Precision Casting Aluminum Alloy Centrifugal Fan Impeller for Multistage Fan
Weifang Boyuan Power Technology Co., Ltd.- Casting Method：pressure Crystallization
- Process：Precision Casting
- Molding Technics：Low Pressure Casting
- Application：Multistage Fan
- Material：Aluminum A356
- Surface Preparation：Sand Blast
Base Info
- Model NO.：A10.1
- Surface Roughness：Ra6.3
- Machining Tolerance：+,-0.01mm
- Standard：ASTM
- Certification：Is09001:2015
- Elongation：3.5%
- Tensile Strength：280MPa
- Yield：220MPa
- Coaxiality：0.02
- Hardness：Hb85
- Weight：30kg
- Heat Treatment：T6
- Service：OEM

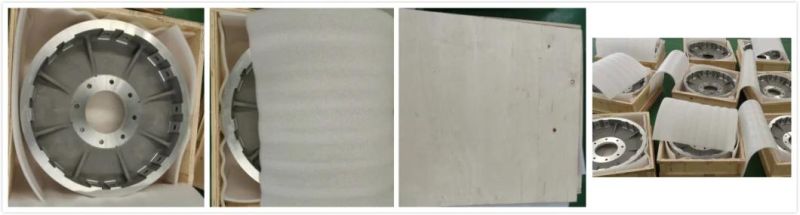

- Transport Package：Plywood Boxes
- Specification：Diameter: 900mm
- Trademark：BoYuan casting
- Origin：Weifang City, Shandong Province, Shandong
- HS Code：8414909090
- Production Capacity：100000pieces,Years
Description

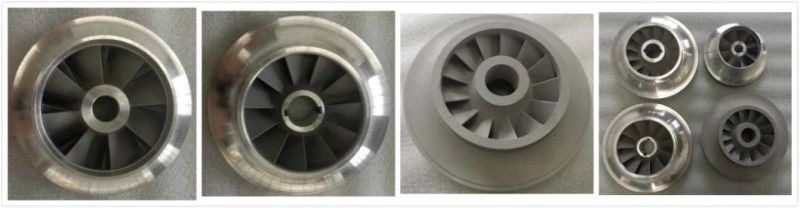

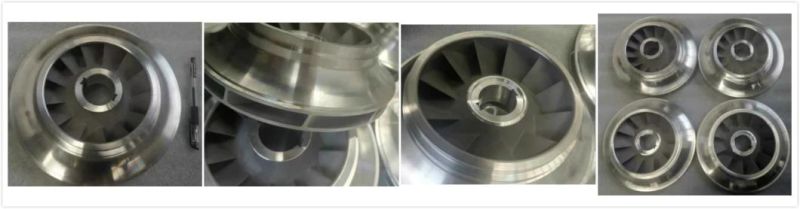

Aluminum alloy Centrifugal fan impeller used for Industral fan, this fan impeller belongs to multistage fan impeller, Fan impeller be finished by integral casting. And casting method of fan impeller is metal mould plaster low precessure casting, casting surface smoothness can meet Ra6.3μm.
The material of centrifugal fan impeller is aluminum A356. And all fan impeller will do T6 heat treatment to imporve the mechanical properties of products. After T6 heat treatment mechanical properties can meet:
Our Advantages

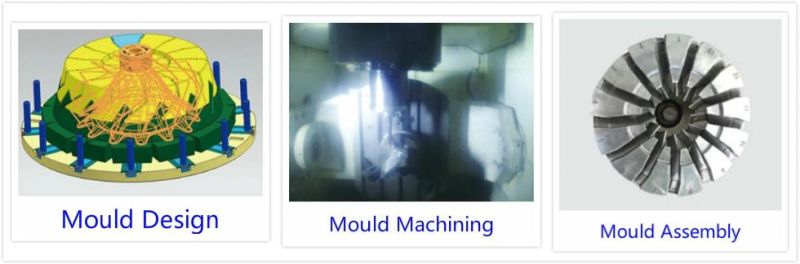

1. We can finish mould design and mould machining, mould assembly in our factory to ensure plan of casting
2. We can finish all casting and machining in our factory to ensure production time
3. We can finish all inspection in our factory to ensure production quality
