• Model NO.：CFMA-007
• Surface Treatment：Sand Blast
• Surface Roughness：Ra6.3
• Standard：ANSI
• Certification：CE, ISO 9001:2008
• Dimension：OEM and ODM
• Origine：Qingdao China
• Certificate：ISO9001 SGS
• Weight：From 0.01-500kgs
• Capacity：1500tons Per Month
• Sand Foundry：Iron Casting
• Delivery Time：30 Days After Receiving The Payment
• Casting Sand：Foundry Sand
• Manufacturer：Yes
• Export Market：Global
• Brand：Chifine
• Service：OEM and ODM
• Surface Treatments：Epoxy Coating
• Usage：Joining Pipe Lines
• Size：Dn50-Dn2000
• Transport Package：in Pallet or as Your Requirement
• Specification：ISO9001 SGS CE
• Trademark：Chifine
• Origin：Jimo Qingdao City
• HS Code：7307190000
• Production Capacity：1500 Tons Per Month

Basic Info.

Model NO. CFMA-007 Surface Treatment Sand Blast Surface Roughness Ra6.3 Standard ANSI Certification CE, ISO 9001:2008 Dimension OEM and ODM Origine Qingdao China Certificate ISO9001 SGS Weight From 0.01-500kgs Capacity 1500tons Per Month Sand Foundry Iron Casting Delivery Time 30 Days After Receiving The Payment Casting Sand Foundry Sand Manufacturer Yes Export Market Global Brand Chifine Service OEM and ODM Surface Treatments Epoxy Coating Usage Joining Pipe Lines Size Dn50-Dn2000 Transport Package in Pallet or as Your Requirement Specification ISO9001 SGS CE Trademark Chifine Origin Jimo Qingdao City HS Code 7307190000 Production Capacity 1500 Tons Per Month

Product Description

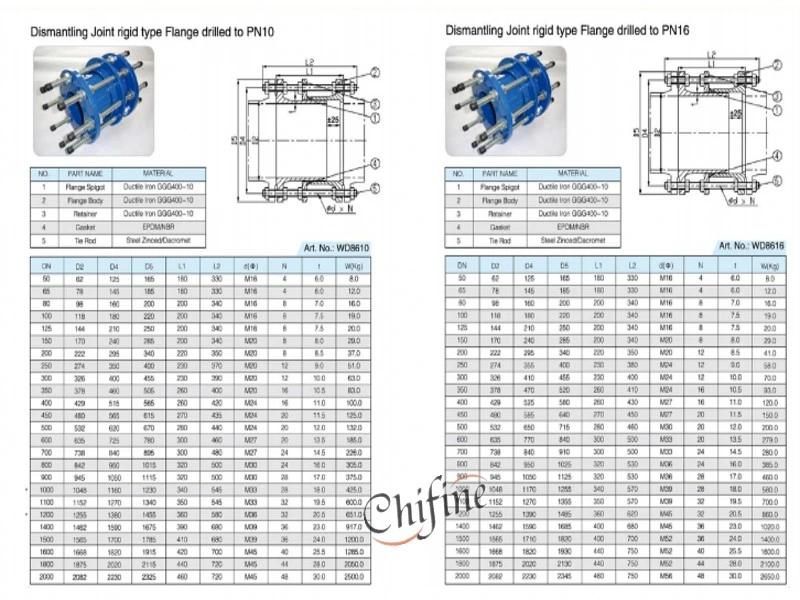

Dismantling Joints are designed to provide a simple method of installation and removal of flanged pipeline components such as valves, pumps and strainers from a pipeline. Dismantling Joints allow a variable setting distance of 50mm on site and are supplied complete, ready to be installed. Dismantling Joints are restrained products that prevent axial pipe movement, they are most suited to valve and pump chambers, and complex steel fitting installations.

PRODUCT DESCRIPTION:

Body: ductile iron grade 500-7/450-12 in accordance with ISO 1083 .
Bolts:carbon steel with zinc coating/stainless steel upon customers' request.
Gasket :EPDM/NBR/SBR

Size and  Pressure
Size:DN50-DN2000   Pressure:PN10 PN16 PN25 PN40

Coating
External coatings
zinc coating+bitumen coating
liquid epoxy painting
epoxy applied by FBE
according to customers' requirements
Internal coatings
cement mortar lining
liquid epoxy painting
epoxy applied by FBE
according to customers' requirements

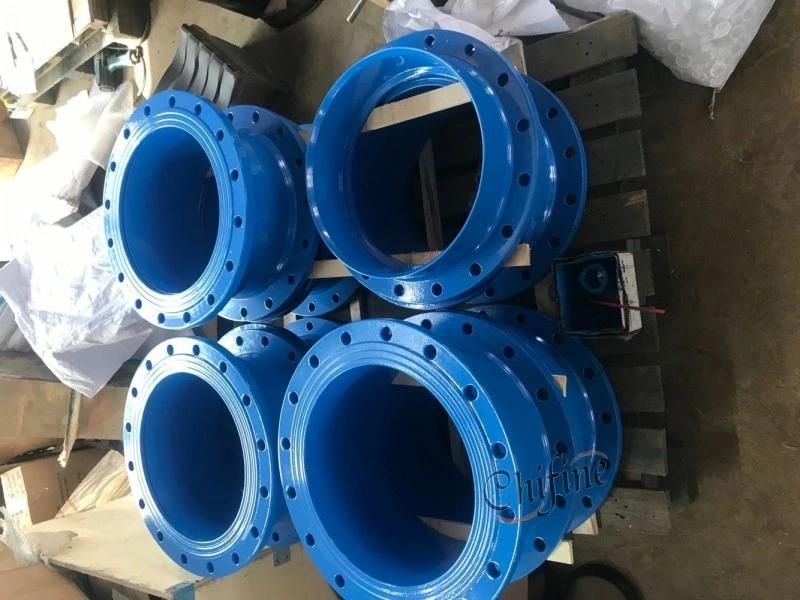

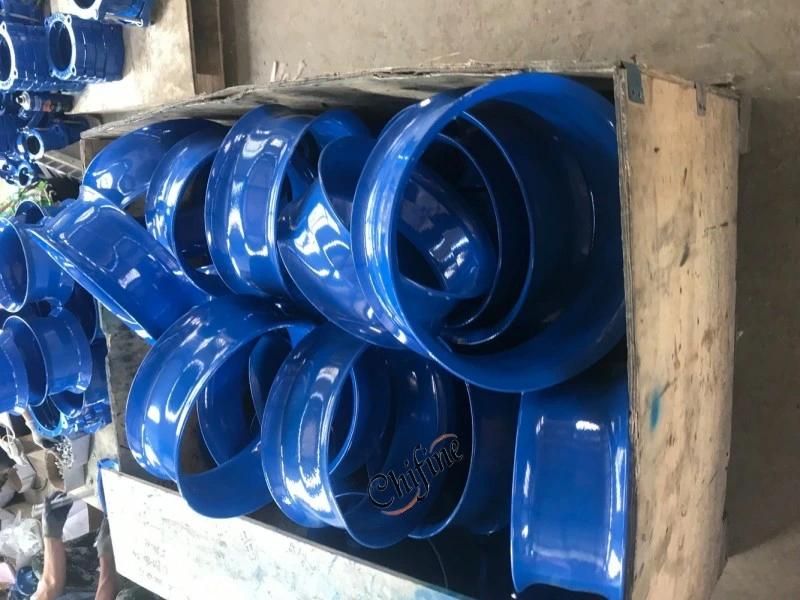

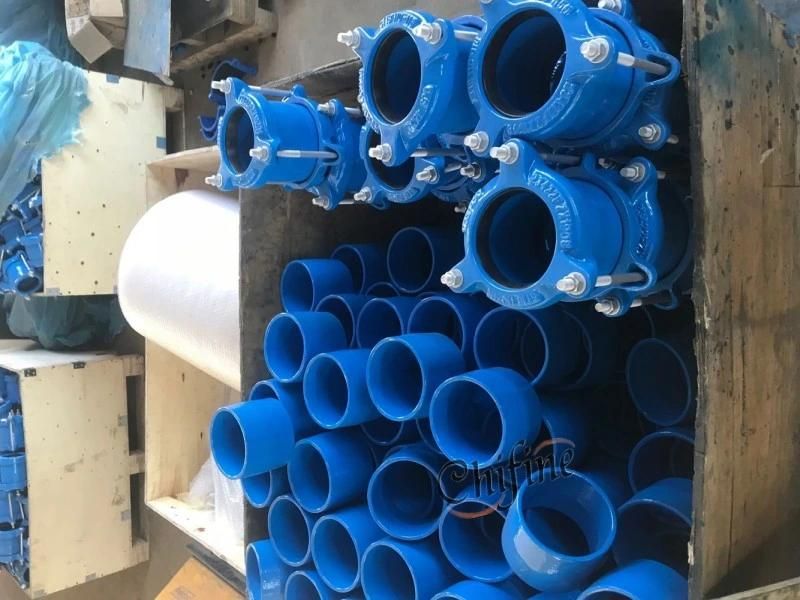

Package
Bubble bags , cartons or wookden case for free options.

Use

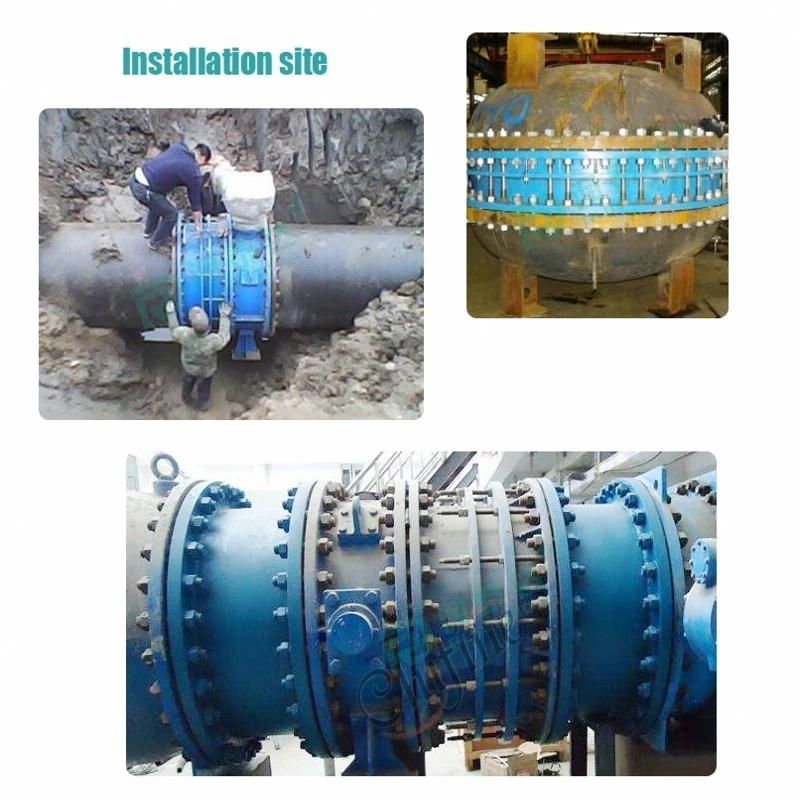

The ductile iron dismantling joint is a pipe expansion joint than could reduce vibration and noise greatly , which is widely used in pipeline system to solve pipe interface axial stretching displacement .



















Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment

Test Equipment

We use first-class facilities in the world to control all the processes to offer products with the best component quality and the correct dimension.Customer's satisfaction is our final target!
Our test equipment include :Three dimentional machine,inspection gauge,Metallurgical structure analysis,Direct reading spectrometer,Tensile testing machine,Inside micrometer,Geneal gauge.

Standard	ISO 2531 & BS EN 545 & EN 598
Material	GGG40 & GGG50 & other ductile iron
Package	Wooden pallet & Wooden case &As request
Accessories	Gasket, Bolt & Nut available upon request
Payment	30%in advance by TT,balance before loading
Coating	Fusion bonded epoxy coating ; Cement lining inside and zinc primer and bitumen painting outside ; Bitumen painting inside and outside ; Red anti-rustcoating
