• Model NO.：C41-25 C41-40 c41-16
• Surface Treatment：Hot Galvanized
• Forging Tolerance：+,-0.2mm
• Standard：DIN
• Certification：CE, RoHS, ISO 9001:2000
• Beat weight：16
• Beat Capacity：180
• height of working：180
• Transport Package：in Plywood Case
• Specification：C41-25
• Trademark：HOTON
• Origin：China
• HS Code：84629910
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. C41-25 C41-40 c41-16 Surface Treatment Hot Galvanized Forging Tolerance +/-0.2mm Standard DIN Certification CE, RoHS, ISO 9001:2000 Beat weight 16 Beat Capacity 180 height of working 180 Transport Package in Plywood Case Specification C41-25 Trademark HOTON Origin China HS Code 84629910 Production Capacity 50 PCS/Month

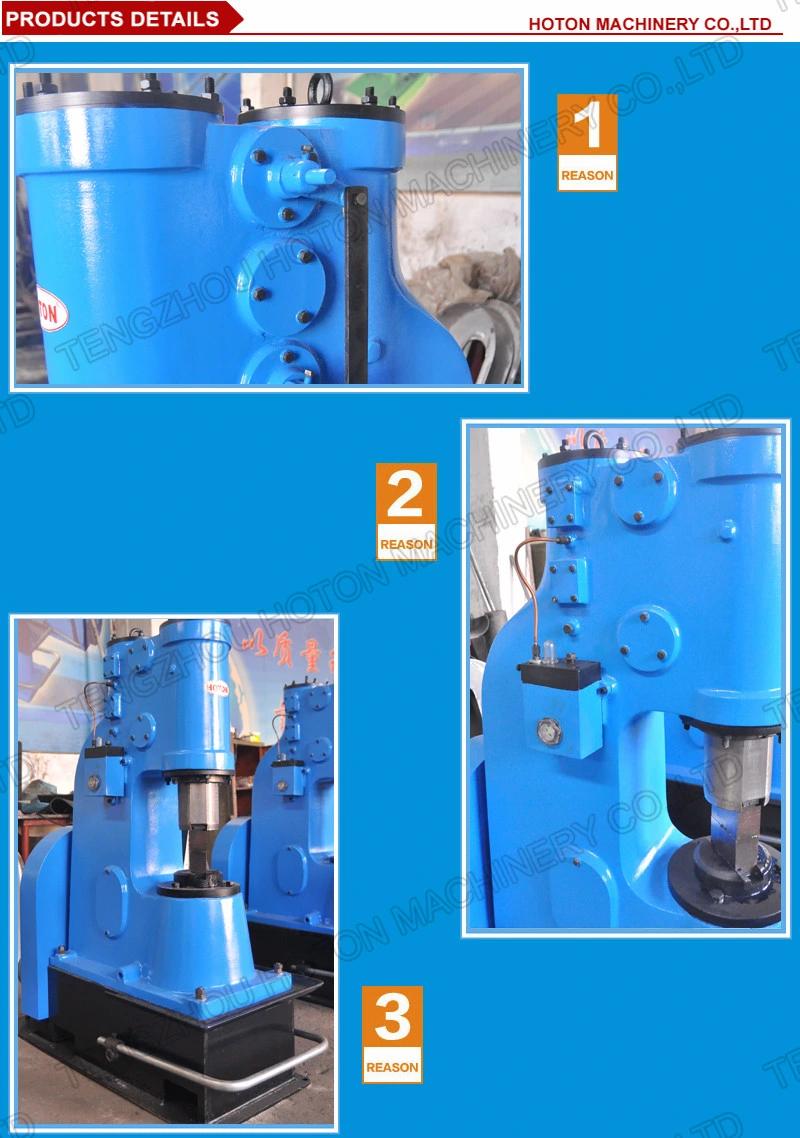

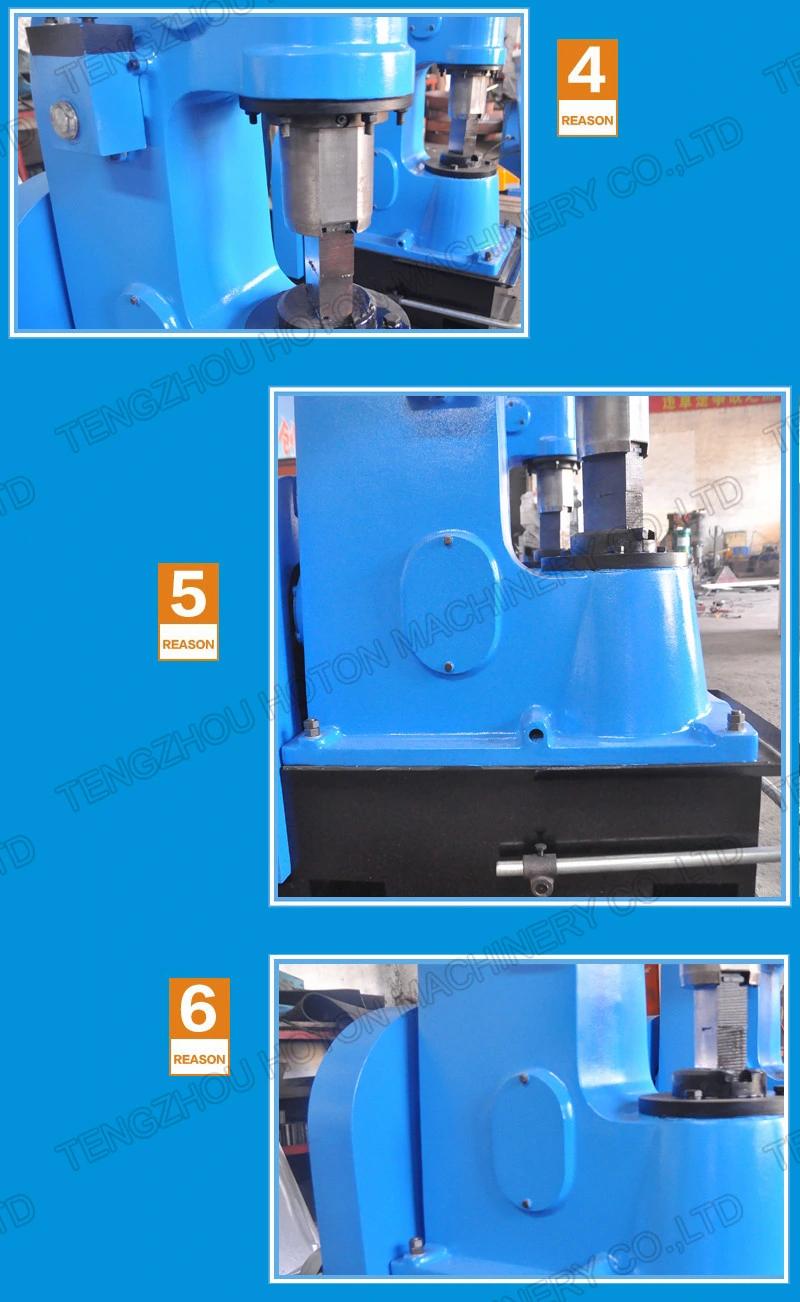

Product Description

AIR HAMMER FEATURES:
1. The air hammer is used for forging and shaping work pieces
2.The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 150KG
4. It is widely used for general forging works, such as drawing out, upsetting,punching, chiseling, forging, welding, bending and twisting
5.It is also used for forging in bolster dies.
SPECIFICATIONS:

MODEL	C41-16KG	C41-20KG	C41-25KG	C41-40KG	C41-75KG
Beat weight(kg)	16	20	25	40	75
Beat capacity(kgf-m)	180	220	270	530	900
Height of working(mm)	180	200	240	245	300
Beat times/minute	258	270	250	245	210
Length of rectangular(mm)	20x20	30X30	40X40	52X52	65x65
Length of circular(mm)	¢20	¢35	¢ 45	¢ 68	¢ 85
Power (kW)	1.5	2.2	2.2	4.5	7
Speed of motor (rpm)	1440	1440	1440	1440	1440
Weight of anvil block(kg)	-	200	250	400	850
Packing Size(cm)	58.5x39x95	67X37X105	80X41X121	108X60X139	160x95x195
N.W./G.W.(kg)	240/265	500/560	760/860	1350/1450	2800/2900



Contact Us:

Andy Wang  TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com

Company Profile:

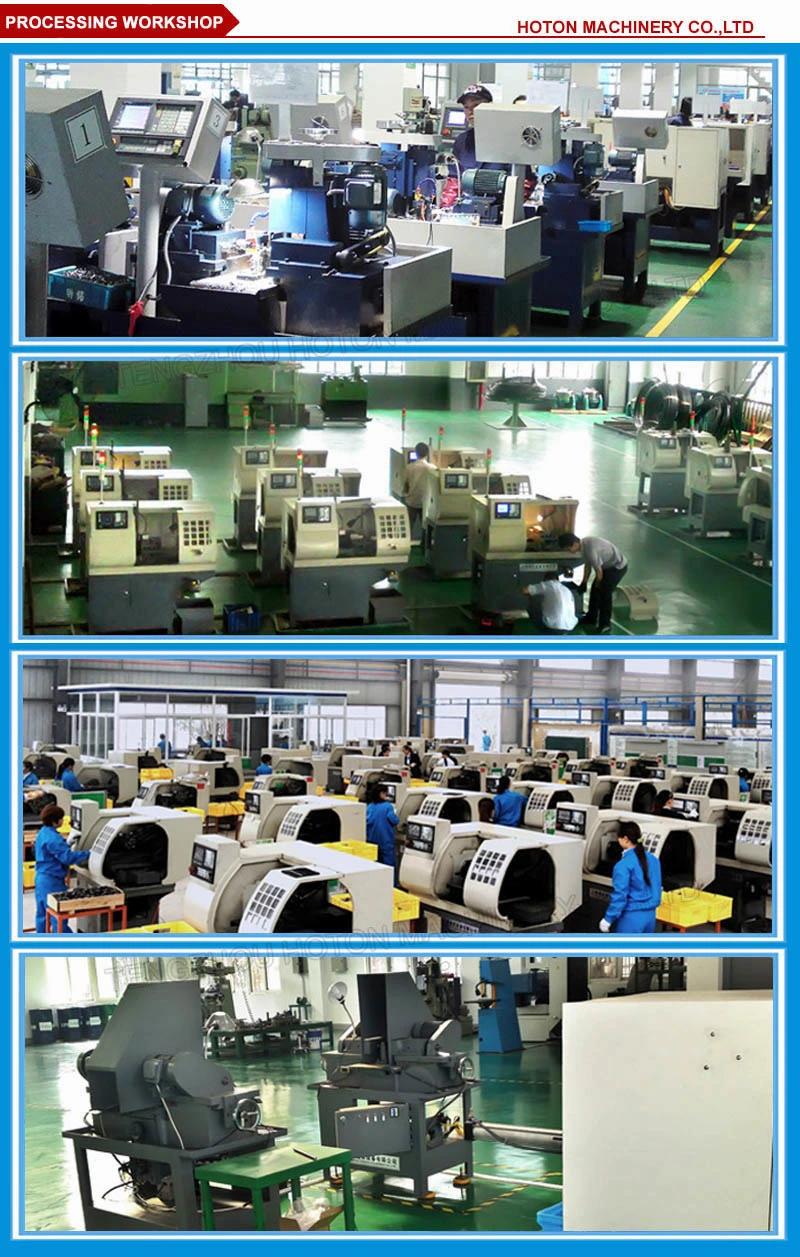

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.
