• Model NO.：ATHI427
• Coating：Water
• Machining Tolerance：+,-0.15mm
• Standard：AISI
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Size：Customized
• Color：Customized
• Voltage：Customized
• Productivity：120 PCS,Hrs

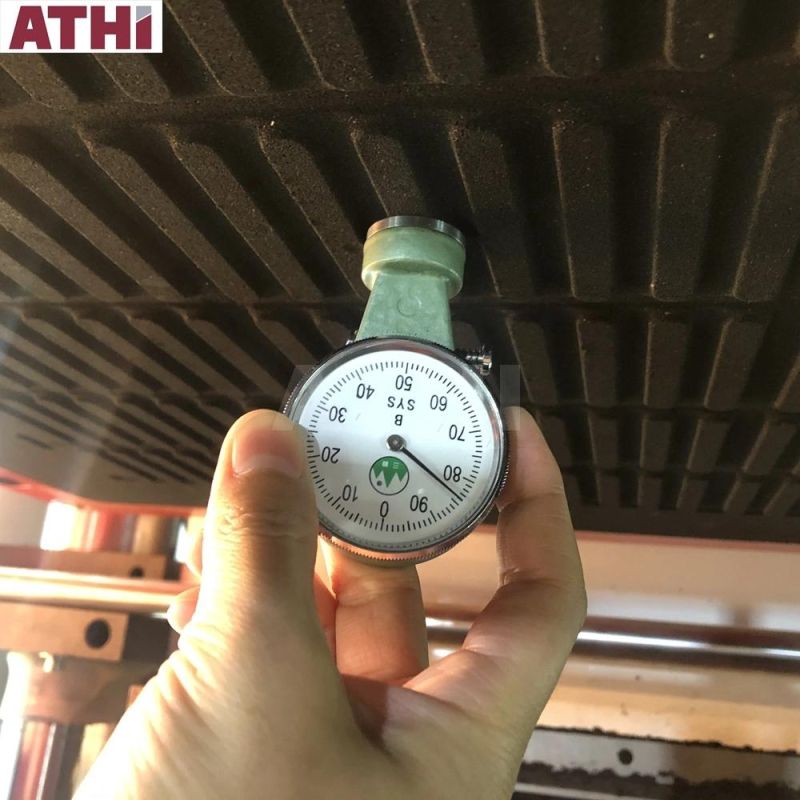

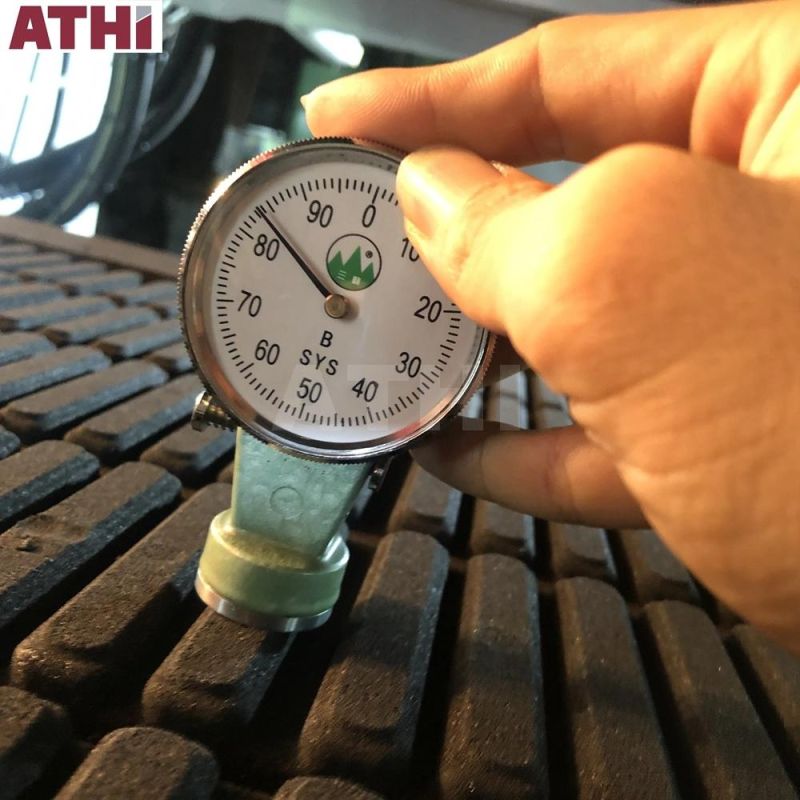

• Sand Mold Hardness：80-90
• Transport Package：Standard Containers
• Specification：Nude Packing
• Trademark：ATHI
• Origin：Shandong, China
• HS Code：84748020
• Production Capacity：30tons-30000tons

Basic Info.

Model NO. ATHI427 Coating Water Machining Tolerance +/-0.15mm Standard AISI Certification CE, ISO 9001:2000, ISO 9001:2008 Size Customized Color Customized Voltage Customized Productivity 120 PCS/Hrs Sand Mold Hardness 80-90 Transport Package Standard Containers Specification Nude Packing Trademark ATHI Origin Shandong, China HS Code 84748020 Production Capacity 30tons-30000tons

Product Description

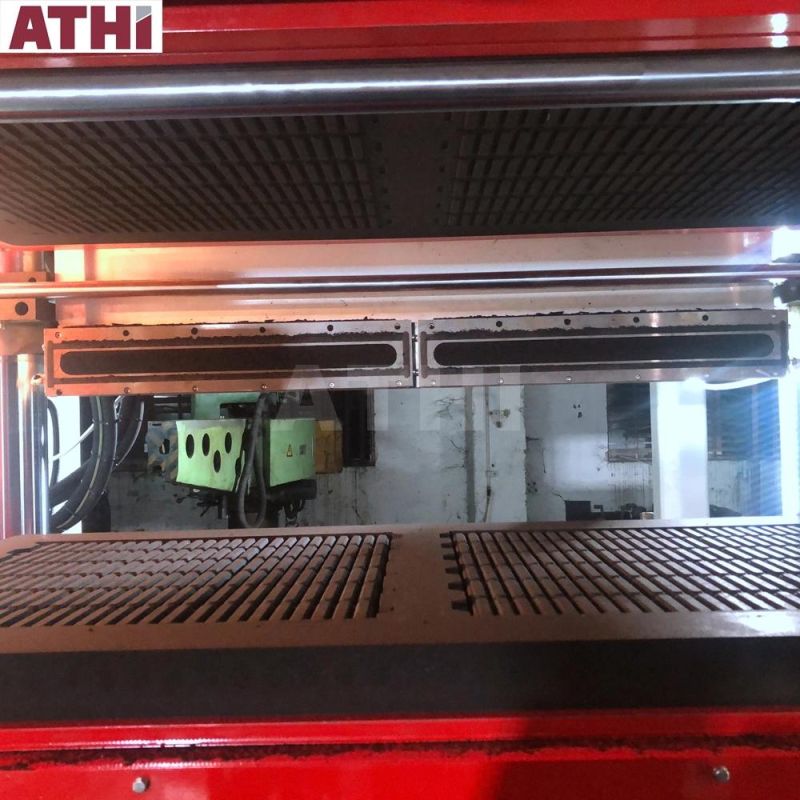

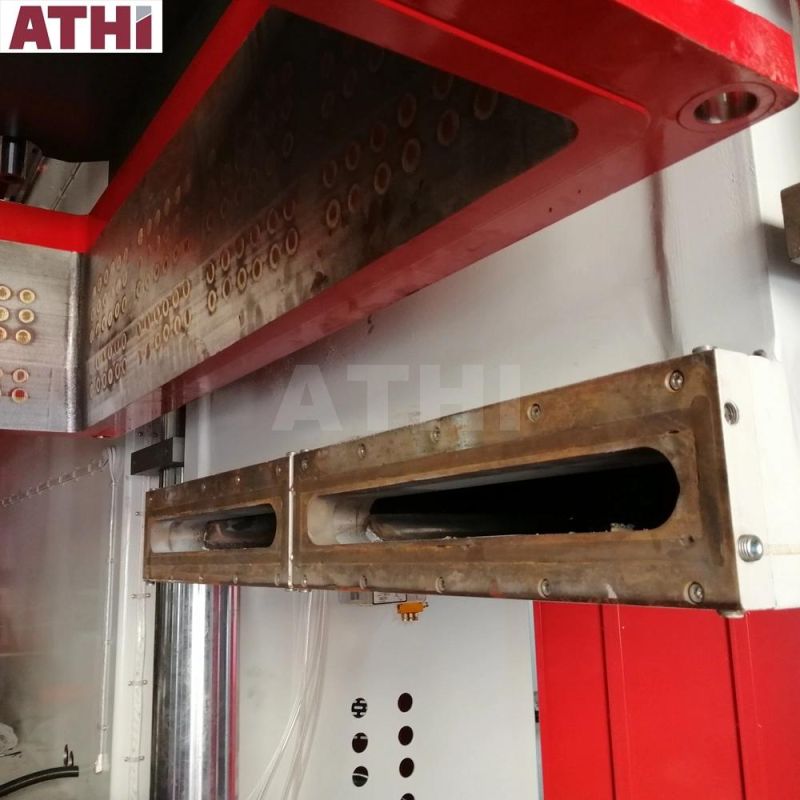

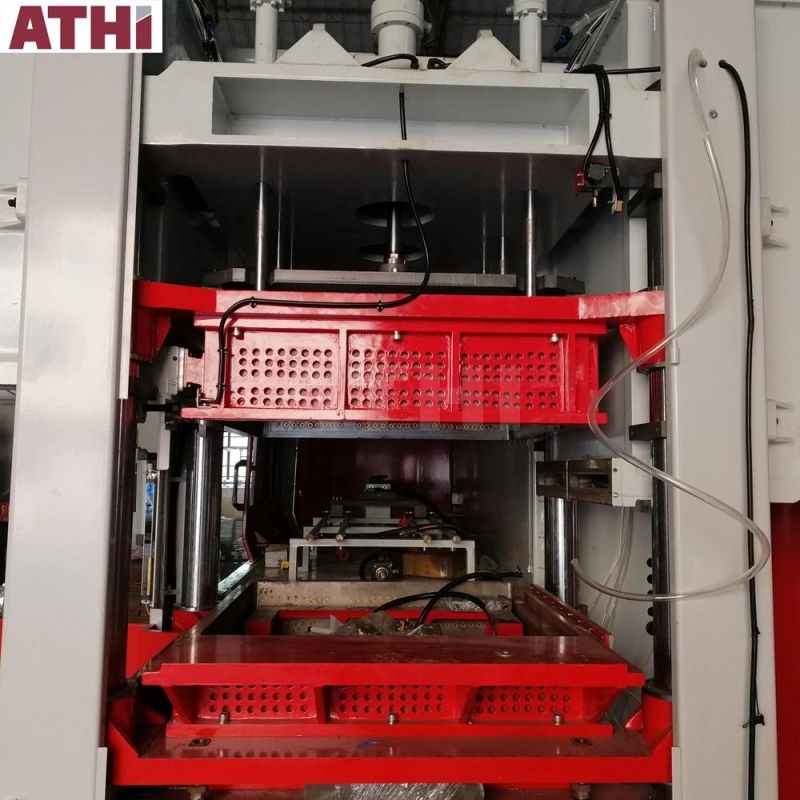

Automatic Molding Machine
Technical Characteristics:
1.The machine is stable,low power consumption,and long lifetime.
2.High level of automation,easy control,and low labor cost.
3.Highly standardized,good parts interchangeable,fast and low-cost maintenance.4.
4.The sand could be compacted both inside and outside according to technical requirements,which make the sand mold better.
5.Mold release agent is sprayed automatically,which makes the demolding smoothly,casting surface glossily,and no defect in the sand mold.
6.Electric cabinet and hydraulic station are all installed in the machine,which makes them compact and easy maintenance.
7.Low failure rate,and the machine can diagnose the failure by its own.

I. Technique Parameter

Parameter/Model	Z425	Z426	Z427
Foundry flask size(mm)	500*400*120-150 550*450*120-150	610*508*130-180 660*508*130-180	700*600*130-180 600*600*130-180
Productivity(Second/Mould)	36-40	40-45	40-45
Air pressure(Mpa)	0.7-0.9	0.7-0.9	0.7-0.9
Air cunsumption(m³/Min)	1.6	2	2.2
Oil pressure(Mpa)	8.5	10.6	9.2
Total power (Kw)	15	18.5	22
Sand consumption (T/h)	8.6-12	10.5-17	12-22


II. Commercial terms
1. Delivery port: Qingdao port, China
2. Production time is 20 days after receiving the payment.
3. Payment terms: payment term is 100% in advance by TT.
4. Packaging: Plywood box
5. Warranty: one year from delivery time.

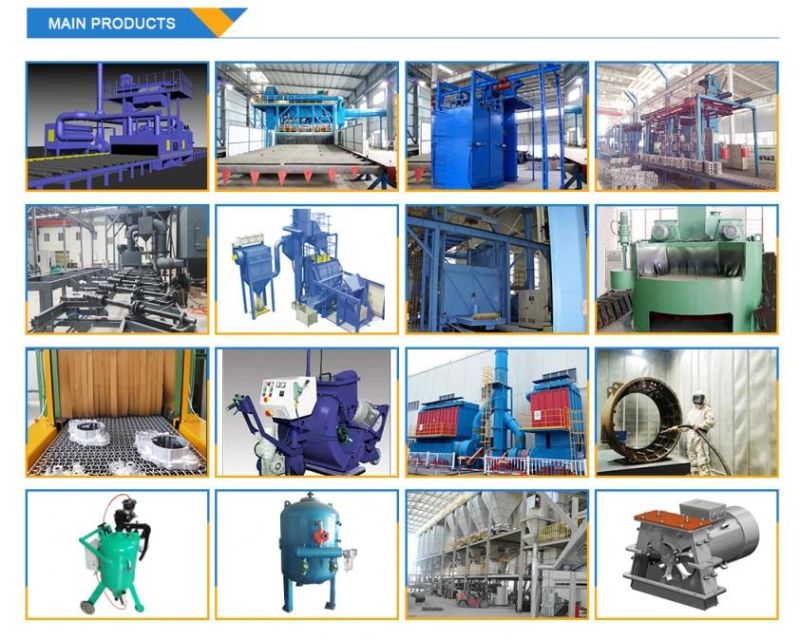

Our main products
