Good Quality LED Heat Sink by Aluminum Alloy Die Casting

Xiamen Stick Industry Co., Ltd.
  • Die Casting Machine Type:Cold Chamber Die Casting Machine
  • Die Casting Method:Vacuum Die Casting
  • Application:Electronic Accessories, Luminaire
  • Machining:Machining Center
  • Material:Aluminum Alloy
  • Surface Preparation:Spray Coating

Base Info

  • Model NO.:STK-14-AL0055
  • Pressure Chamber Structure:Horizontal
  • Tolerance Grade:6
  • Casting Surface Quality Level:2
  • Certification:ISO 9001:2000
  • Weight Available:0.02 Kg to 10 Kgs
  • Machine Size:25-800 Tons
  • Process:Cold Chamber Die Casting
  • Material Available:ADC10, ADC12, A380, 383,B390 (Yl117), Yl112, Yl104
  • Molding Process:Die Casting
  • Software Applied:PRO,E, Auto CAD, Solid Work 2001, Caxa, Ug, CAD
  • Surface Finish:Deburr,Painting, Plating, Polishing, Sand Balsting
  • Tolerance:+,-0.05mm, Post Processing Is Available
  • Cavity:Single or Multiple
  • Transport Package:Foam Bag+Export Carton
  • Specification:ISO 9001: 2000
  • Trademark:STK or Customized
  • Origin:Xiamen, China
  • HS Code:76169090
  • Production Capacity:500000PCS,Month

Description

Basic Info.

Model NO. STK-14-AL0055 Pressure Chamber Structure Horizontal Tolerance Grade 6 Casting Surface Quality Level 2 Certification ISO 9001:2000 Weight Available 0.02 Kg to 10 Kgs Machine Size 25-800 Tons Process Cold Chamber Die Casting Material Available ADC10, ADC12, A380, 383,B390 (Yl117), Yl112, Yl104 Molding Process Die Casting Software Applied PRO/E, Auto CAD, Solid Work 2001, Caxa, Ug, CAD Surface Finish Deburr,Painting, Plating, Polishing, Sand Balsting Tolerance +/-0.05mm, Post Processing Is Available Cavity Single or Multiple Transport Package Foam Bag+Export Carton Specification ISO 9001: 2000 Trademark STK or Customized Origin Xiamen, China HS Code 76169090 Production Capacity 500000PCS/Month

Product Description

Good Quality LED Heat Sink by Aluminum Alloy Die Casting
Stick Industry Co.,Ltd.are a professional Aluminum Alloy Die Casting led shell  / led housing / led Heat Sink manufacturer in China,and specializing in producing Moulds, plastic injection molding, Aluminum/Zinc Die casting, CNC Machining, Sheet Metal Forming, Surface Treatments, Assembly for your OEM order with competitive price


Aluminum Die Casting Alloys:

Lightweight
High dimensional stability for complex shapes & thin walls
Good Corrosion Resistance & Mechanical Properties
High Thermal & Electrical Conductivity
High Strength at High Temperatures


At STK, all Aluminum die casting tooling is designed and built in-house to meet both the customer's and STK's own exacting standards. Production processes for each project are carefully planned, documented and monitored utilizing various statistical process control techniques.

Tooling Leadtime 4-7 weeks
Tooling Lifetime50000 shots to 500000 shots
Weight per unitCan cast from 0.02 to 10kgs per piece
Tolerance+/-0.05mm (secondary machining is available for tight tolerance)
Materials AppliedADC10,ADC12, A380, 383, B390 (YL117), YL112, YL104
Casting Process
1)Aluminum Die Casting

2) Machining: CNC turning, milling, drilling, grinding, cutting, reaming and threading

3) Surface Treating

4) Quality Checking and packaging

Surface Finish
Shot blasting

Parting line removal

Powder coating

Painting

Anodizing

Passivation

E-coating

T-coating

Our Advantage
1. In house tooling design and fabrication

2. Owned die casting, polishing and plating workshops

3. Advanced equipment and excellent R& D Team

4. A broad variety of ODM& OEM product range

5. Strict quality Control System

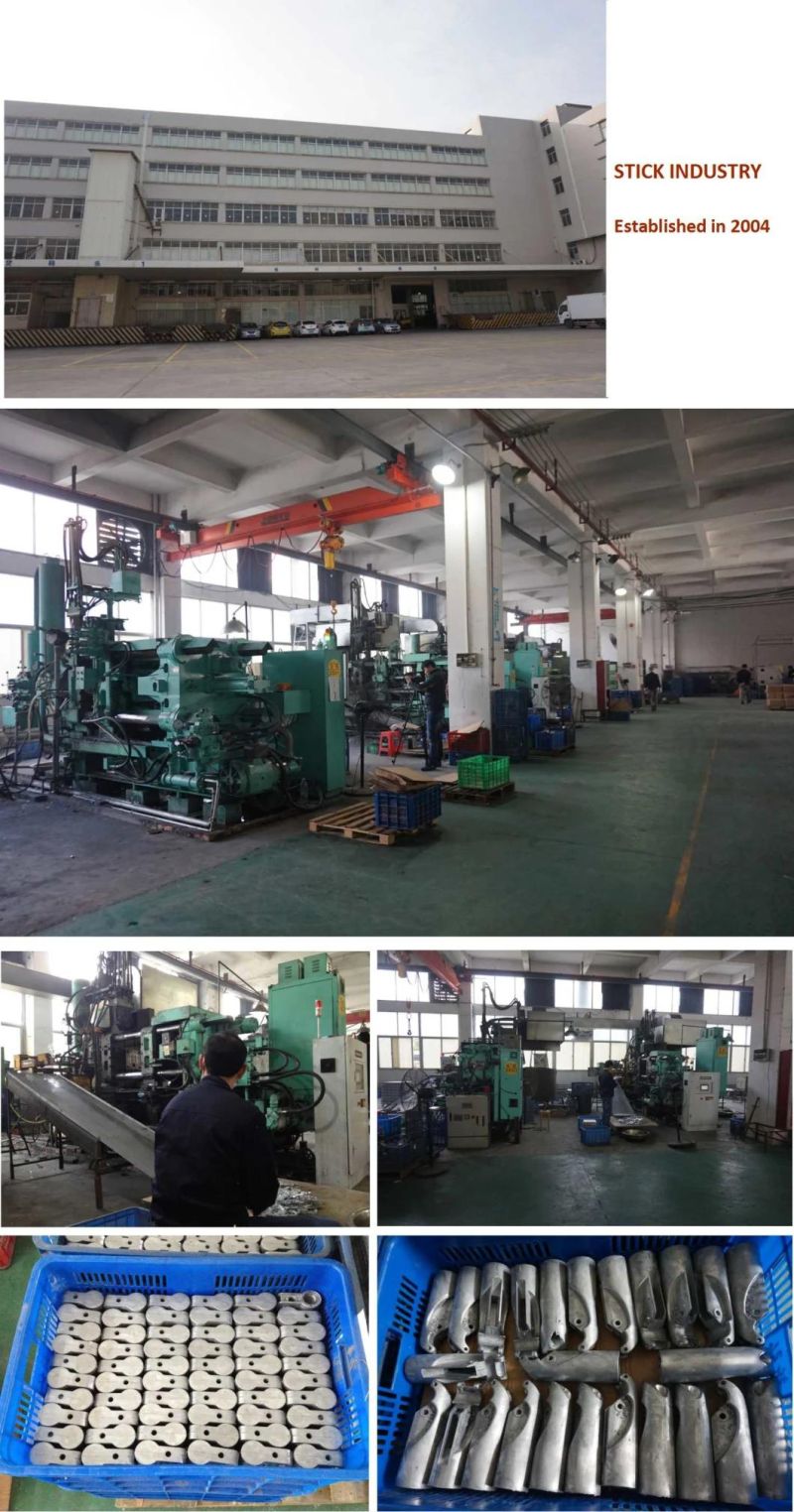

Aluminum Die Casting WorkshopGood Quality LED Heat Sink by Aluminum Alloy Die Casting

Production Capabilities:
  • Automated equipment can handle high volume casting jobs of up to 100,000 pieces per week
  • Manual machines for low volume jobs of as little as 500 pieces per year
  • Can cast from 0.02 to 10kgs
  • Single to Multiple Cavities
  • Most Aluminum die casting alloys are offered such as ADC10, ADC12, A380, 383, B390 (YL117), YL112, YL104
  • 10 die casting & gravity casting lines. Each with an individual aluminum furnace which allows us to cast multiple alloys
  • 7 sets of Cold Chamber Die Casting Machines. Range from 125 Tons to 800 Tons. And 3 sets of Gravity Machines.

Molds Created On-Site

In addition to die-casting, Stick Industry is a full-service mold manufacturing facility offering in-house tooling design and production. Where most die-casting facilities only offer mold repair, Stick Industry can create a custom mold on-site, and then simply transfer that mold to the die-casting area.

Stick Industry is capable to obtain the relevant data to produce molds and product samples according to the latest3-D solid model and a simple sketch or a sample part. Plus, we use the most modern multi-axis CNC machine tools for optimum precision

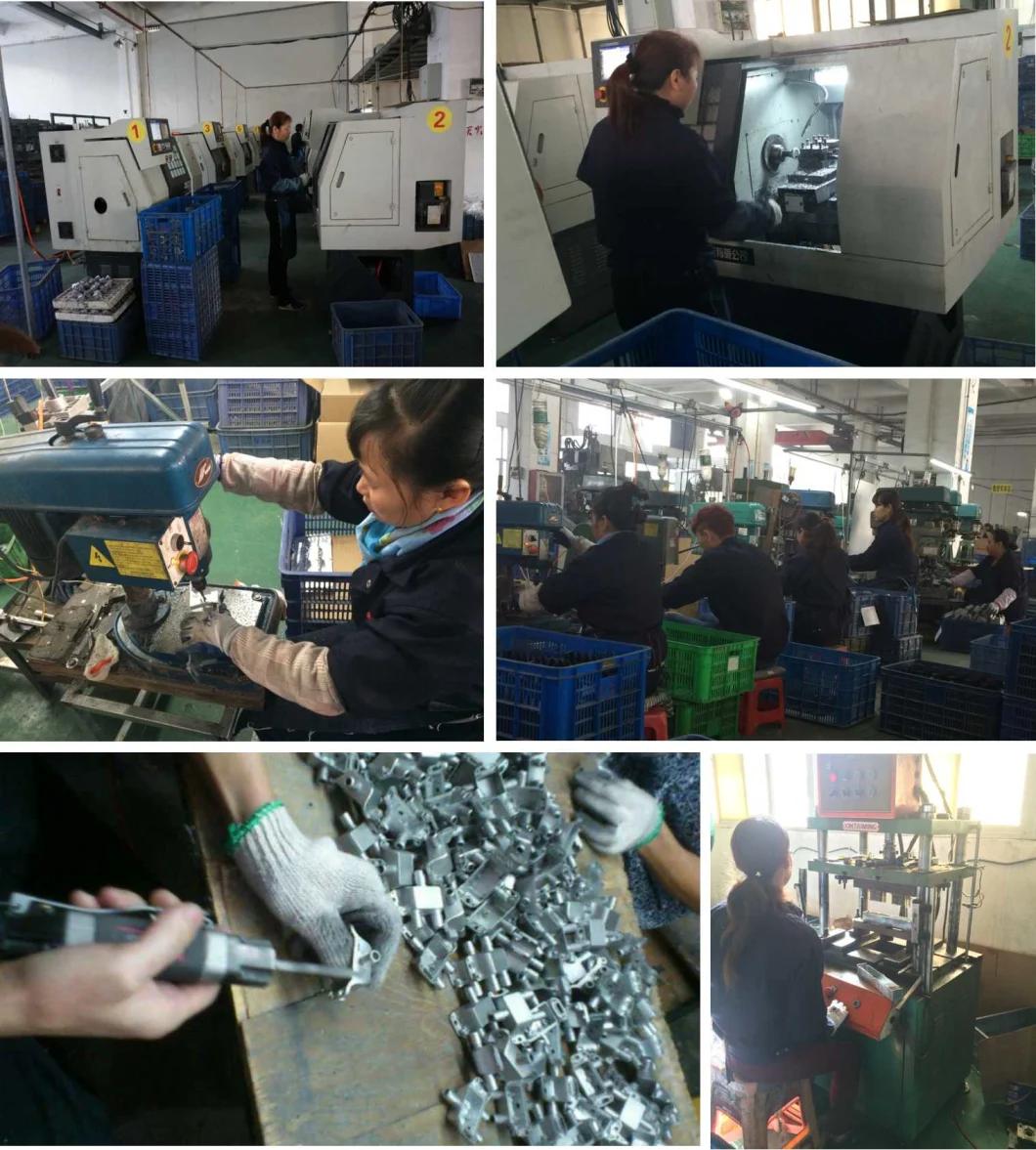

 CNC MachiningGood Quality LED Heat Sink by Aluminum Alloy Die Casting

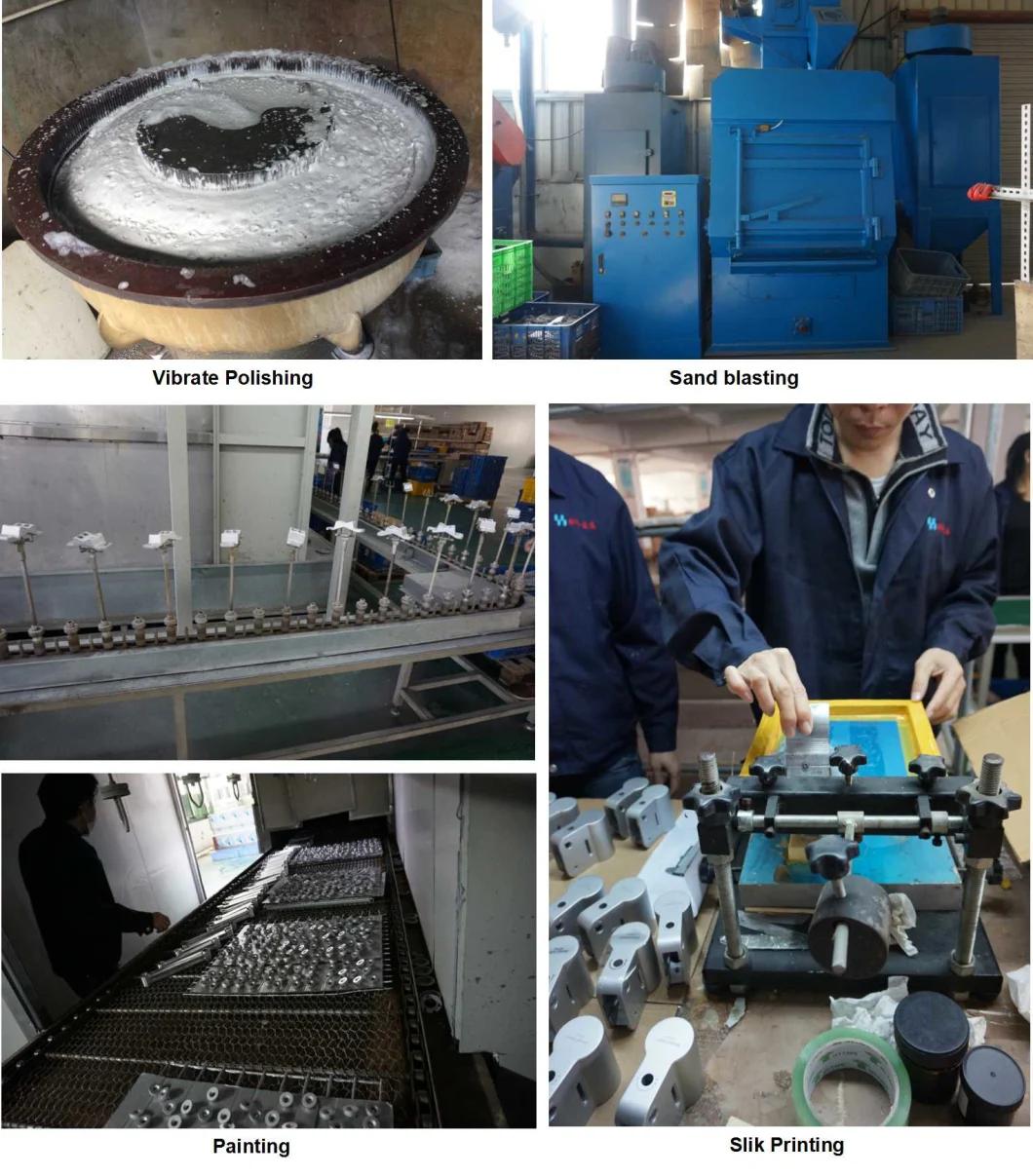

Surface Treatment
Good Quality LED Heat Sink by Aluminum Alloy Die Casting

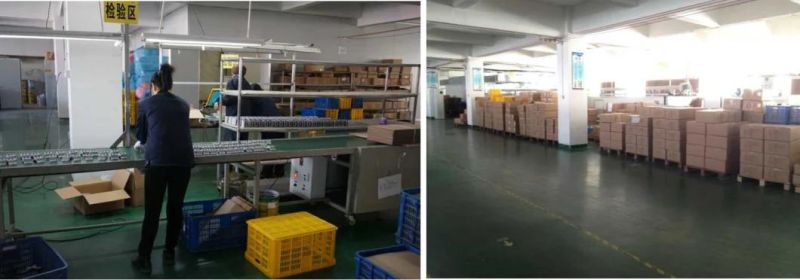

Inspection & Warehousing
Good Quality LED Heat Sink by Aluminum Alloy Die Casting

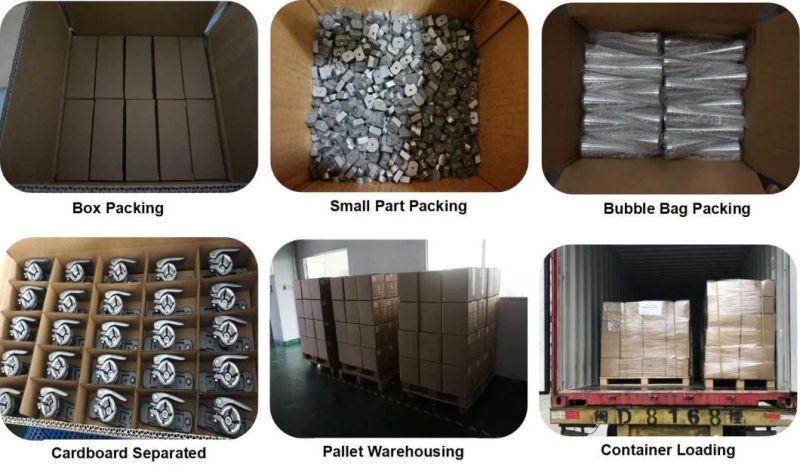

Packing & Shipping
Good Quality LED Heat Sink by Aluminum Alloy Die Casting

RFQ:

Q: Are you trading company or manufacturer ?

A: We are factory. We are experienced manufcturer, have our own factory and warehouse.


Q: What do we need if you want a quote?

A: Please kindly send us your 2D & 3D drawing of your product. The need the detail specifications as follows :
    1. Material
    2. Surface treatment
    3. Estimated production volume


Q:How doe the payment process work ?

A:  Our preferntial payment term is T/T
      Mould Tooling :  50% down payment,  50% balance against the sample approval.
       Mass Production: 50% down payment , 50% against the B/L copy .


Q: How do I know about the production ?

A: We will double confirm your requirements and send you the samples before the mass production .
    During the mass production , we will keep you informed of any progress.Besides, we will do 100% quality inspection
   before shipment


Q:How do we know about  the deliery status ?

A: We will immediately inform you the tracking number  once we get it from shipping agent. Besides, we will update the latest shipping information.




We will pay great attention to your any question or enquiry.

If any questions, please feel free to contact us at any time.
