• Model NO.：DLZX
• Surface Treatment：Sand Blast
• Surface Roughness：Ra0.1
• Standard：GB
• Certification：CE, ISO 9001:2008
• Function：Machinery Parts, Auto and Motorcycle Parts, Valve
• Size of Sand Mold：400*500mm
• Sand Mold Thickness (Upper)：<120 mm
• Sand Mold Thickness (Lower)：<110mm
• Moulding Speed (Sec/Mold)：35-50(Without The Time of Putting Sand Core)
• Compaction Pressure：<13MPa
• Air Consumption：0.3m³(Normal,Mold)
• Drive Mode：Hydraumatic-Pneumatic
• Total Power：15.5kw
• Mold Plate Thickness：15 ~20mm
• Transport Package：Wood Package
• Specification：CE
• Trademark：DELIN
• Origin：Fujian Nanan
• Production Capacity：130 Sets,Year

DESCRIPTIONDATA1,Size of  Sand Mold (mm×mm) 400*500mm2,Sand Mold Thickness ( mm)Upper mold:<120 mmLower mold:<110mm3,Moulding speed (Sec/mold)35-50(Without the time of putting sand core)4,Compaction Pressure≤13Mpa5,Air Consumption0.3m³(Normal/mold)6,Drive ModeHydraumatic-pneumatic7,Total Power15.5kw8,Power Supply380V,50HZ9,Machine Appearance Size2960×2100×2800(L×W×H)10,Net Weight5.5t11,Humidity of Sand Mold2.5%~4%12,Mold Plate Thickness15 ~20mm

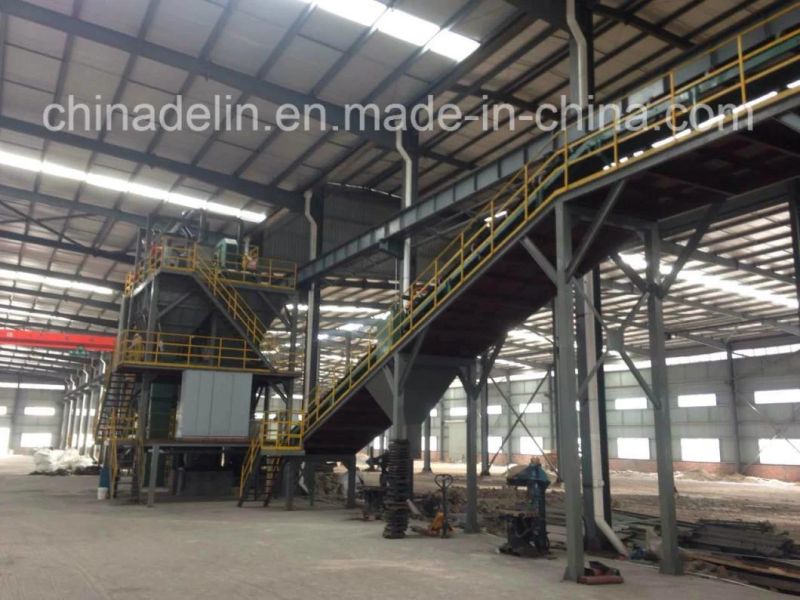

ONE OF OUR CUSTOMER'S WORKSHOP:



SAMPLES BEFORE CASTING

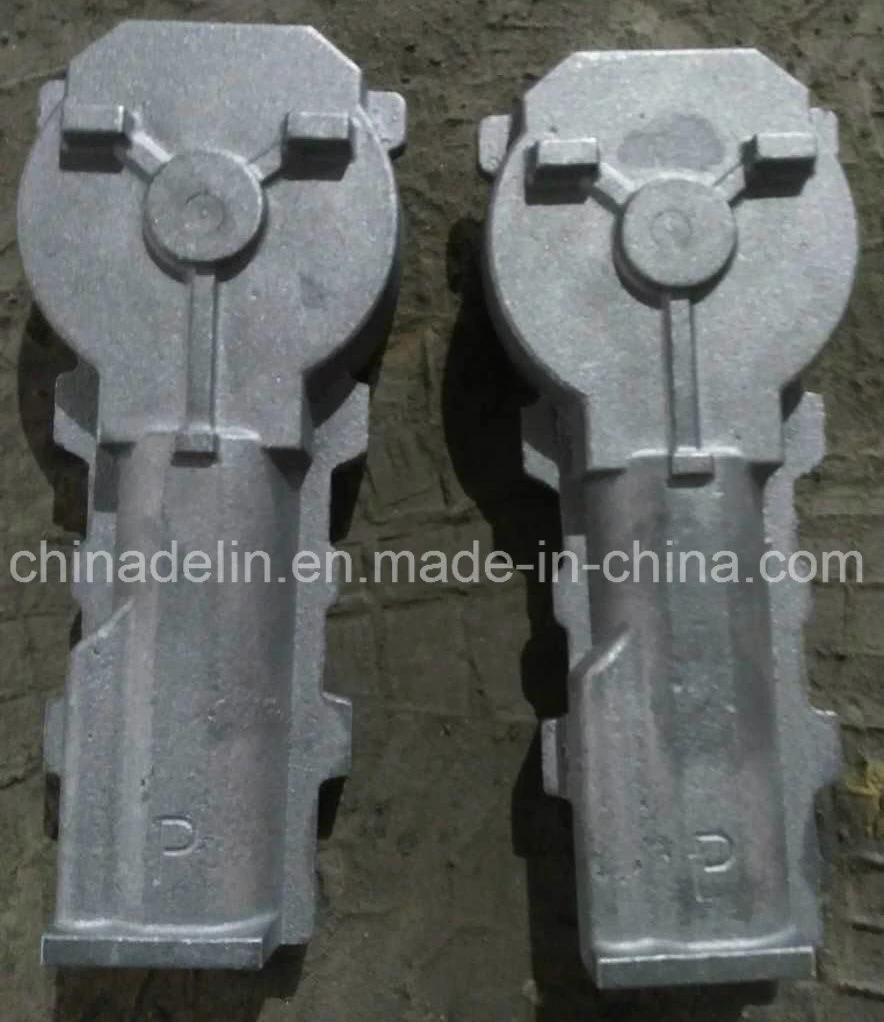

SAMPLES AFTER CASTING


COMPANY PROFILE:




Nan'an Delin Machinery Manufacturing Co.,Ltd (formerly known as YongYu Machine Factory) established in Nan'an city which is called the Plumbing Hometown.  Factory located in Xinglian Industrict Area, about 2km away from the downtown , it just takes about 30 minutes to  the Jinjiang ( Quanzhou ) Airport , nearly seaport and highway ,so the traffic is very convenient.

Delin was established in 1998, has about 10,000 square meters and the fixed asset 20 million RMB . Specialized in manufacturing complete gravity casting equipments . Delin specialized in technology counseling, mold designing, on-site staff trainingand producing gravity machine .

Our company integrates designing ,developing, producting and selling as a whole, so we have the
moulds , machining ,welding , painting, and assembly workshop and so on .The main products are gravity casting machine, auto core shooting machine ,mix sand machine  three major series etc. tens of kinds.

Above equipments are based on the comprehensive similar product at Domestic and foreignand independent development to adapt to Domestic and foreign of special equipment of foundry industry used in plumping hardware,sanitary ,car spares ,valves etc.

At present we have set many sales office and sales service so that the products spread all over the domestic market. High- quality and perfect service and human-based design believed and praised by the customer.

We warmly welcome your any inquiries and orders or visiting to our company !!
