Foundry Casting Cr26 High Chromium Blow Bar for Impact Crusher
Shenzhen DENP Industrial Co., Ltd.- Casting Method:Sand Casting
- Casting Form Material:Metal
- Casting Metal:Cast Steel
- Casting Form Usage Count:Permanent
- Surface Treatment:Polishing
- Surface Roughness:Ra12.5
Base Info
- Model NO.:Impact Crusher
- Coating:Paint
- Machining Tolerance:+,-0.15mm
- Standard:ASTM
- Certification:CE, ISO 9001:2008
- Material:High Chorme
- Cr Content:26%
- Advantage:Wear Resistance
- Hardness:HRC 60
- Usage:Impact Crusher
- Transport Package:Wooden Tray Package
- Specification:GB
- Trademark:DP
- Origin:Shanghai
- HS Code:84749000
- Production Capacity:5000 T,Y
Description
Basic Info.
Model NO. Impact Crusher Coating Paint Machining Tolerance +/-0.15mm Standard ASTM Certification CE, ISO 9001:2008 Material High Chorme Cr Content 26% Advantage Wear Resistance Hardness HRC 60 Usage Impact Crusher Transport Package Wooden Tray Package Specification GB Trademark DP Origin Shanghai HS Code 84749000 Production Capacity 5000 T/YProduct Description

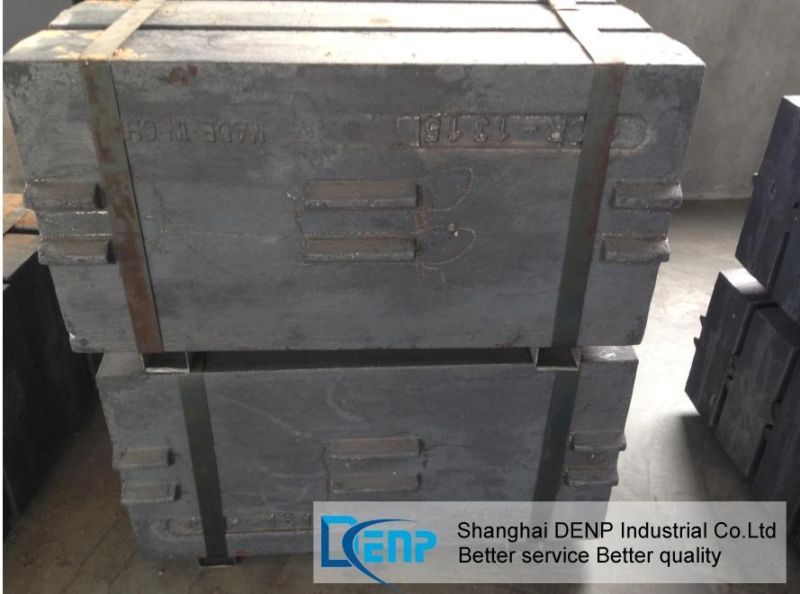

26%Cr High Chromuim Blow barBlow Bar (Crusher Hammer Plate) Introduction
Manufactured with hypereutectic super high manganese and chromium, our blow bar has a service life 50~100% longer than those made of traditional high chromium iron. The special processing techniques ensure that our blow bar has leading performance.
Blow Bar (Crusher Hammer Plate) Features
1. Employ the external refining technology effectively reduced the harmful elements, impurity and oxygen and hydrogen harm, greatly enhanced the abrasion resistance and impact toughness of the steel!
2. Using proprietary metamorphic agent for modification treatment, fine grains, improve carbide configuration and distribution, and to improves the abrasion resistance and tenacity.
3. Optimizing heat treatment process, make the product of uniform hardness especially, impact abrasion resistance becoming stronger.
1. Range of crusher spare parts:
1.1Jaw crusher parts:
Jaw plate(jaw liner), toggle plate, up guard plate, down guard plate, set adjustment, end cover, block, moving jaw, frame, Swing Jaw liner
1.2 Impact crusher parts:
Blow bar(flat hammer), adjustment bar, impact plate, liner plate, frame(impact rack), cover, bolts, nuts, washer, etc.
1.3 Hammer crusher parts
Hammer head, liner plate, bolt, nuts, washer
1.4 Cone crusher parts:
Concave, mantle, eccentric shaft etc.
1.5 vibrating screen parts
Roller, bolts, nuts, washer
Model | Specifications | Feeding Opening Size (mm) | Max.Feeding Size (mm) | Capacity(t/h) | Power (kw) | Weight(t) | Dimension(mm) |
DPFW 1210 II | 1150X960 | 1100X1030 | 400 | 90-160 | 90-110 | 17.0 | 2400x1870x2550 |
DPFW 1214 II | 1150X1400 | 1100X1430 | 500 | 130-200 | 132-160 | 22.0 | 2400x2310x2550 |
DPFW 1315 II | 1300X1500 | 1200X1530 | 600 | 180-320 | 160-200 | 29.0 | 2700x2570x2800 |
DPFW 1318 II | 1300X1800 | 1200X1830 | 700 | 240-400 | 200-250 | 34.0 | 2700x2870x2800 |
DPFW 1210 III | 1150X960 | 570X990 | 250 | 70-120 | 90-110 | 15.0 | 2550X1870X2100 |
DPFW 1214 III | 1150X1400 | 570X1430 | 250 | 90-170 | 132-160 | 19.0 | 2550X2310X2100 |
DPFW 1315 III | 1300X1500 | 625X1530 | 300 | 180-270 | 160-200 | 25.0 | 2960X2570X2380 |
DPFW 1318 III | 1300X1800 | 625X1830 | 300 | 220-300 | 200-250 | 30.0 | 2960X2870X2380 |
