• Model NO.：aluminum alloy die casting
• Pressure Chamber Structure：Horizontal
• Tolerance Grade：6
• Casting Surface Quality Level：2
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008, Ts16949
• Item Name：Case Housing Aluminum Alloy Pressure Die Casting
• Casting Material：Aluminium Alloy Zl101, A356, ADC12, A380.
• Manufacturing Process：Die Casting, Option Low Pressure Casting
• Casting Tolerance：CT5-7 for Aluminum Casting
• Machining Process：CNC Machining, Lathing, Milling, Turning, Boring,
• Surface Treatment：Powder Coating,Anodizing, Painting
• Rough Surface Roughness：Ra3.2-25 for Aluminum Casting
• Package：Multiplayer Wood Box,Pallet, with Big Plastic Bag
• Lead Time：45 Days for Aluminum Alloy Die Casting
• Service：Aluminum Alloy Die Casting
• Transport Package：Multiplayer Wood Box,Pallet
• Specification：Customized Size
• Trademark：Matech Industry
• Origin：China Zhejiang
• HS Code：8701901990
• Production Capacity：1500 Ton,Month

Basic Info.

Model NO. aluminum alloy die casting Pressure Chamber Structure Horizontal Tolerance Grade 6 Casting Surface Quality Level 2 Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008, Ts16949 Item Name Case Housing Aluminum Alloy Pressure Die Casting Casting Material Aluminium Alloy Zl101, A356, ADC12, A380. Manufacturing Process Die Casting, Option Low Pressure Casting Casting Tolerance CT5-7 for Aluminum Casting Machining Process CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Surface Treatment Powder Coating,Anodizing, Painting Rough Surface Roughness Ra3.2-25 for Aluminum Casting Package Multiplayer Wood Box/Pallet, with Big Plastic Bag Lead Time 45 Days for Aluminum Alloy Die Casting Service Aluminum Alloy Die Casting Transport Package Multiplayer Wood Box/Pallet Specification Customized Size Trademark Matech Industry Origin China Zhejiang HS Code 8701901990 Production Capacity 1500 Ton/Month

Product Description

PRODUCT INFORMATION

Item Name	Foundry Oem Top Quality Customized Service Aluminum Alloy Die Casting
General Products         Application/Service Area	Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine,  transportation equipment,  Agriculture machine metal Parts, etc.
Main blank Process for Aluminum Casting	Die Casting, Permanent Molding /Gravity Casting, Low Pressure Casting, .
Blanks Tolerance -Casting  Tolerance	CT4-6 for Permanent Molding, Die Casting,
Applicable Material for casting	A356.0/ZL101,GAlSi7Mg  (3.2371.61)/AlSi7Mg/ Or according to customer requirements
Casting Blank Size  /Dimensions	2 mm-1500mm / 0.08inch-60inch , or according to customer requirements
Casting Blank Weight	Range from 0.01kg-50kg
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/  Broaching/Reaming /Grinding/Honing and  etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2 according to customer requirement
Applicable Heat Treatment	T5~T6
Applicable Finish Surface  Treatment	Shot/sand blast, polishing,  Primer Painting , Powder coating, ED- Coating,   Finish Painting, Anodize (White or Black Color)
MOQ	For aluminum casting : 1 pcs for sample test For Machining: 1 pcs for sample test
Lead Time	45days from the receipt date of aluminum alloy die casting

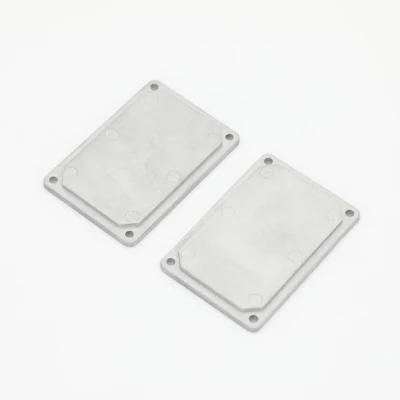

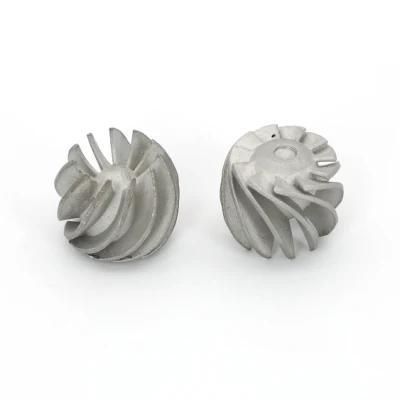

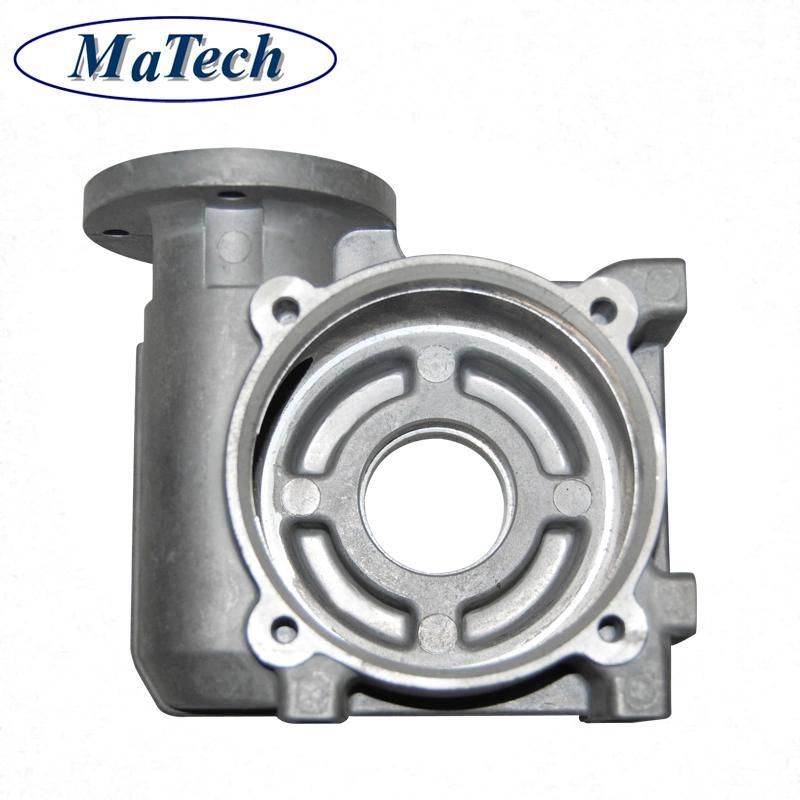

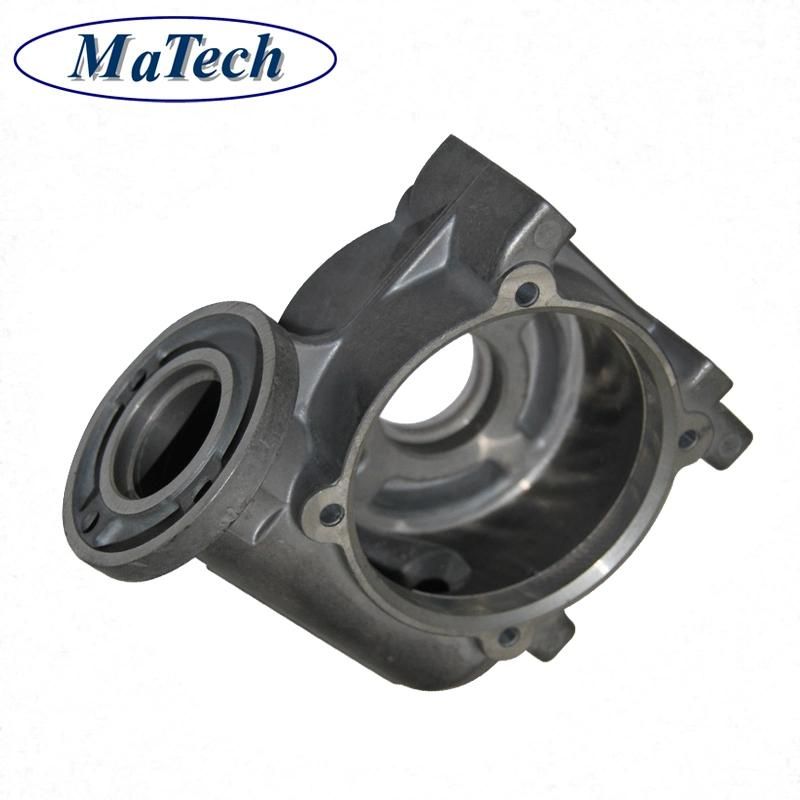

Product Show




Comapny Inforamtion


Production Show

Packing



Technology

Match Industry Ltd.can supply ONE-STOP service to you from die casting, machining to surface treatment. Time and cost will be saved for you.

There are 12 die casting machines and furnaces in factory. The casting machine specification is from 200 ton, 400 ton to 800 tons.  The capacity is over 25 tons per month.  The furnace size is 500 Kg.

There are 15 professional engineers whose experience over 8 years. We can supply feasible analysis for you. Speed and precision are our aim.

Casting pouring simulation can be supplied if it's needed. Melting filling the mold and cooling status (speed and consequence) are clearly simulated, concentration of over heat positions and potential casting shrinkage can be early identified and  avoid by pre-actions.

What we supplied is high precision customized part of vehicle and machinery. It is sure that we can bring value to you.
