Metal Type Low Pressure Cast Aluminum Alloy A356 Reflux Bend Used for Compressor
Weifang Boyuan Power Technology Co., Ltd.- Casting Method：Plaster Model Low Pressure Casting
- Casting Form Material：Metal
- Casting Metal：Aluminum Alloy
- Casting Form Usage Count：Permanent
- Surface Treatment：Sand Blast
- Surface Roughness：Ra3.2
Base Info
- Model NO.：H14.1
- Coating：Zinc oxide
- Machining Tolerance：+,-0.01mm
- Standard：ASTM
- Certification：Is09001:2015
- Elongation：3.5%
- Tensile Strength：280MPa
- Yield：220MPa
- Application：Refrigerant Compressor
- Dynamic Balance：G1
- Overspeed：20000
- Coaxiality：0.02
- Rotate Speed：18000rpm
- Hardness：Hb92
- Weight：3kg
- Material：Aluminum A356
- Heat Treatment：T6
- Service：OEM

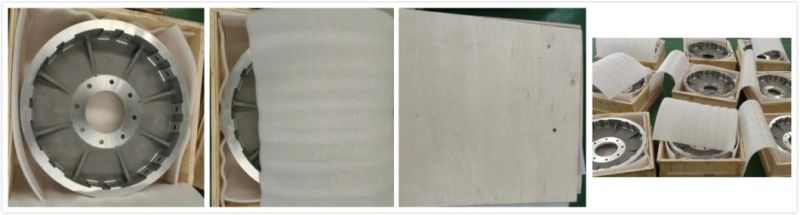

- Transport Package：Plywood Boxes
- Specification：Diameter: 280mm
- Trademark：BoYuan casting
- Origin：Weifang City, Shandong Province, Shandong
- HS Code：8414909090
- Production Capacity：100000pieces,Years
Description

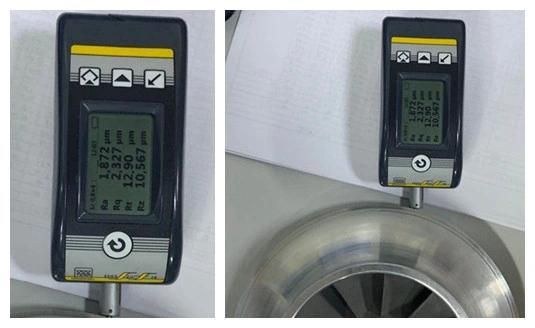

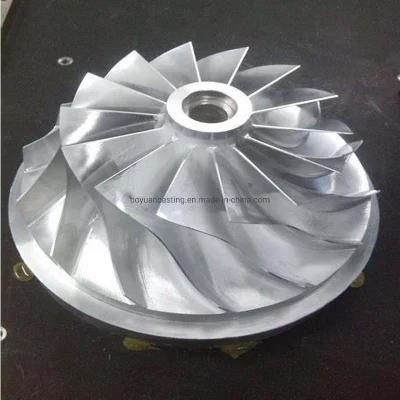

Compressor impeller used for Refrigerant Compressor, comprssor impeller be finished by integral casting. And casting method of compressor impeller is plaster low precessure casting, casting surface smoothness can meet Ra2.0μm.
The material of compressor impeller is aluminum A356. And all compressor impeller will do T6 heat treatment to imporve the mechanical properties of products. After T6 heat treatment mechanical properties can meet:
Our Advantages

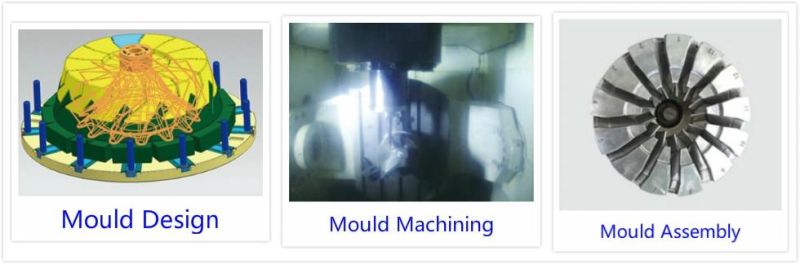

1. We can finish mould design and mould machining, mould assembly in our factory to ensure plan of casting
2. We can finish all casting and machining in our factory to ensure production time
3. We can finish all inspection in our factory to ensure production quality
Production Capacity/ material of casting and machining
1.What materials do you cast and machining?
We can cast and machining aluminum alloy parts and high temperature alloy parts.
2. How can I get the quotation?
Please send us information for quote: drawing, material, weight, quantity and request.
3.If we don't have drawing, can you make drawing for me?
Yes, we make the drawing of your sample and duplicate the sample.
4.When can I get the sample?
Sample: 25-30 days after you start to make mold. The accurate time depends on your product.
5.What is your main order time?
Order time: 30-40 days after the payment. The accurate time depends on your product.
6. What is your payment method?
Tooling: 100% TT advanced.
Batch order: 50% deposit, balance 50% to be paid before shipment.
7. Which kind of file format you can read?
PDF, ISGS, DWG, STEP, STP,X-T...
