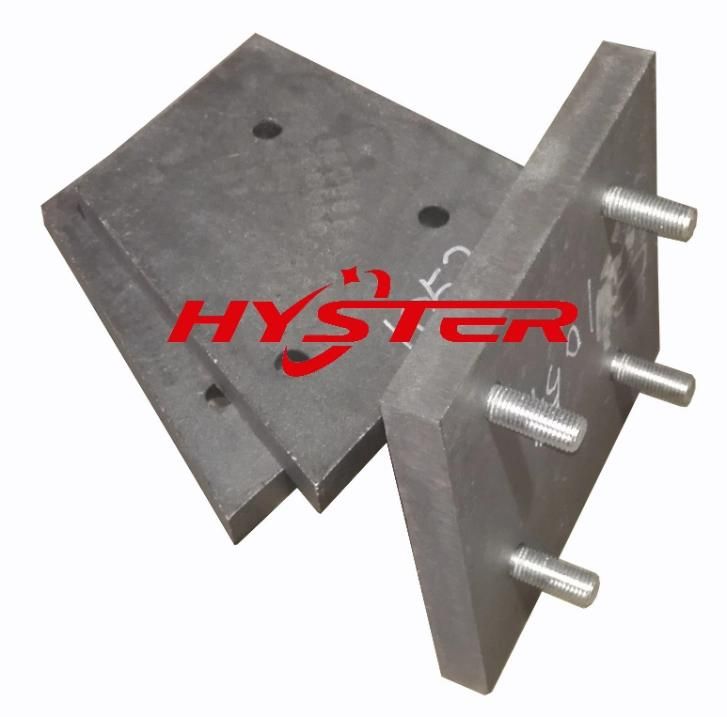

High Chromium Cast Wear Plates 58-63HRC

Hunan Hyster Material Technology Co., Ltd.
  • Casting Method：Sand Casting
  • Casting Form Material：Sand
  • Casting Metal：Cast Iron
  • Casting Form Usage Count：Disposable
  • Surface Treatment：Polishing
  • Surface Roughness：Ra1.6

Base Info

  • Model NO.：High Chromium Cast Wear Plates 58-63HRC
  • Coating：None
  • Machining Tolerance：+,-0.10mm
  • Standard：ASTM
  • Certification：ISO 9001:2008, ISO 9001:2015
  • Thickness：12-50mm, 50-100mm
  • Usage Life：at Least 5 Times More Than Hardox 450
  • Features：7 Times More Usage Life Than Hi-Mangnese Steel
  • Transport Package：Polywood Crates, Polywood Pallets
  • Specification：Crusher liner protection
  • Trademark：OEM, HYSTER
  • Origin：Hunan, China
  • HS Code：84749000
  • Production Capacity：500tons Per Month

Description

SizeN.W.(kg)300x300x32(20+12)22.6300x150x32(20+12)11.3200x100x25(15+10)3.9
N.W.
(kg)LengthWidthThicknessDEFGNW 20011300x300x2030030020741527415213.8NW 20022300x300x2030030020741527415212.8NW 20031300x200x203002002074152100-9.2NW 20041300x150x20300150207415275-6.9NW 20051300x100x20300100207415250-4.5NW 20061200x100x202001002062.57550-3.0NW 32011300x150x32300150327415274-11.0NW 32021300x200x323002003274152100-14.8NW 32031300x300x3230030032741527415222.0NW 32042300x300x3230030032741527415219.6NW 32051300x100x32300100327415250-7.2NW 32061200x100x322001003262.57550-4.7High Chromium Cast Wear Plates 58-63HRC

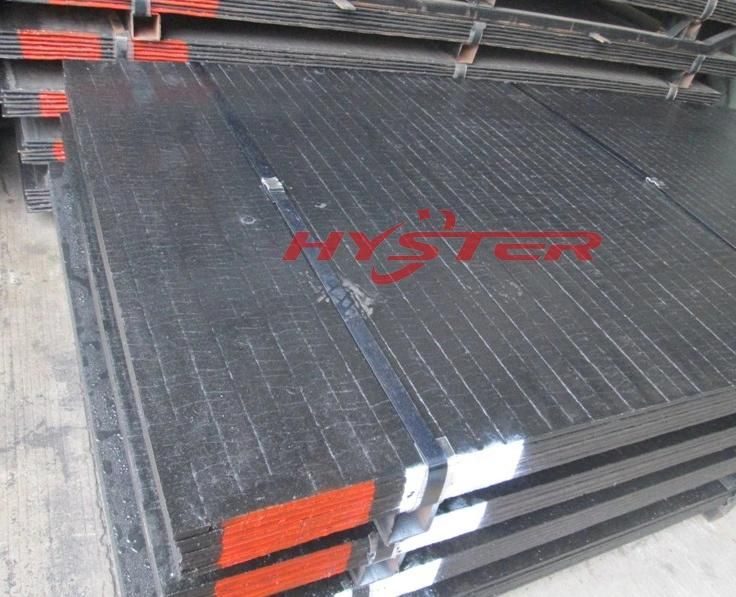

Hyster Wear System - Overlay Wear Plates
Chromium carbide clad wear plate manufactured in HYSTER and marketed worldwide. Overlay plate is well suited to fixed and mobile plant equipment associated with the construction, mining and resource industries; particularly iron ore, coal, cement and steel applications.


CHEMICAL COMPOSITION C 4.0%~5.5% Cr 21%~27%

BACKING PLATE Standard: SS400 mild steel or equivalent Stainless or others upon request

HARDNESS HV600±;      TOLERANCES ± 1mm

HEAT RESISTANCE Maximum: 400 degree

MICROSTRUCTURE Mixture of high volume hexgonal shaped chromium carbide in tough austenitic and martensitic matrix(GRADE 2355)

PENETRATION TO THE BASE METAL 1.5mm

COLD FORMING Minimum Radius: 150mm( for 6+4 ), Suggested: using hydrolic press to bend plate

CUTTING Plasma( from backing plate side ) / Laser Cutting / Water Jet Knife

APPLICATIONS

                -Bucket & Lips                -Drag liners             -Chute & Hopper liners         -Cyclones

                -Classifier                        -Ore chutes             -Fan blades & Housings        -Mine car liners

                -Conveyor casings         -Steel plant               -Green Walt crushers              -sinter breaker bar

High Chromium Cast Wear Plates 58-63HRC
Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.

Hyster wear system is more than just a product. It is a combination of products, services and metallurgical expertise to provide superior wear protection for mining equipment and other industrial applications. A key part of this package is the Bimetallic Wear Products, a comprehensive offering of buttons, blocks, bars, runners, tiles and overlay plate to match any application.

Hyster White Iron Wear Block(700BHN-63HRC)-- Range of products based on a composite white iron wear surface metallurgically bonded to a weldable mild steel backing plate. Wear block is fixed to the surface of fixed and mobile plant equipment, such as mining buckets and chutes, where protection from severe abrasion is required.
Hyster Overlay Wear Plates--Chromium carbide clad wear plate manufactured in HYSTER and marketed worldwide. Overlay plate is well suited to fixed and mobile plant equipment associated with the construction, mining and resource industries; particularly iron ore, coal, cement and steel applications.
Hyster NiHard--Abrasion and high impact resistant product. It is often cast into billets and liners and used extensively in the mining, construction and mineral processes industries, particularly in bulk handling situations.
Hyster Tungsten Carbide-High standard abrasion resistant product. It is often used where the application has no impact force or very slightly impact.

Following are our laminated wear blocks:
Laminated wear blocks---the most common types are:
  1) Chocky bars (CB 25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. CB150)
  2) Standard wear bars (DLP201A, DLP 125, DLP184, DLP528, DLP619, DLP451, DLP450, DLP2230, DLP2017, DLP4, DLP919, DLP1191, DLP515, DLP200, DLP271, DLP270, DLP508, DLP115, DLP337, DLP1101, DLP343 )
  3) Shaped wear bars
  4) Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196)
  5) Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm)
  6) Bi-metallic wear plates
  7) Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm)
  8) Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm)
  9) Wafer strips, WS25, WS40, WS50, WS65;
 10) Elbow wear blocks
 11) Other sizes and shapes
 12) Multi-function gradient cutter tooth
 13) Rockbox liners
 14) Micro-ledges
Overlay wear plates: standard sheet size 1500x3000mm, thickness 4+4(8mm), 6+4(10mm), 6+6(12mm), 8+5(13mm), 8+6(14mm), 10+5(15mm), 10+10(20mm), 12+12(24mm), 12+17(29mm).
Please contact us if you have any interest. thank you!
