• Model NO.：CFJX-127
• Machining Tolerance：+,-0.02mm
• Standard：ANSI
• Certification：CE, ISO 9001:2008
• Package：Pallet ,Manmade Wooden Case or as Your Requirement
• Certificate：ISO9001 SGS
• Origine：Qingdao
• Service：OEM and ODM
• Brand：Chifine
• Machining：CNC
• Delivery Time：30 Days After Receiving The Payment
• Manufacturer：Yes
• Export Market：Global
• Transport Package：in Pallet, Case or as Your Requirement
• Trademark：Chifine
• Origin：Qingdao, China
• HS Code：7307190000
• Production Capacity：150 Tons Per Month

Basic Info.

Model NO. CFJX-127 Machining Tolerance +/-0.02mm Standard ANSI Certification CE, ISO 9001:2008 Package Pallet ,Manmade Wooden Case or as Your Requirement Certificate ISO9001 SGS Origine Qingdao Service OEM and ODM Brand Chifine Machining CNC Delivery Time 30 Days After Receiving The Payment Manufacturer Yes Export Market Global Transport Package in Pallet, Case or as Your Requirement Trademark Chifine Origin Qingdao, China HS Code 7307190000 Production Capacity 150 Tons Per Month

Product Description

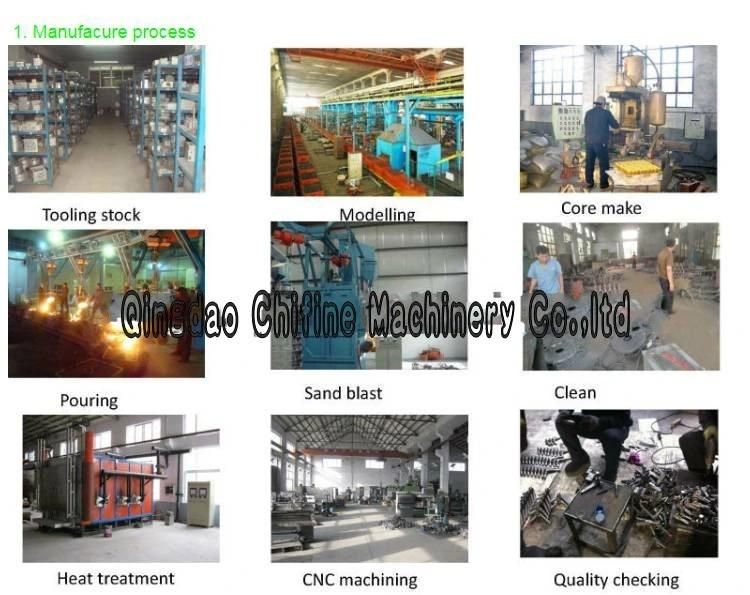

sand casting
1) molding process: Green sand casting,Shell sand casting,resin sand casting,auto sand casting line
2) Material:----Grey iron,GG15,GG20,GG25,GG30
Ductile iron GGG40 GGG50,GGG60,GGG70
EN 1596 EN1563,ASTM A159,and etc
3)Molding: Hand made/Half auto made Auto casting line
4)Possible Heat Treatment:Normalizing
5) Part Unit Weight range:0.5Kg~1000kg
6)Wall thickness requirements: min 3mm,
7)Manufacturer certification: ISO9001 (2000)

8)Technics:Green sand.resin sand, precoated sand;


Advantages:

1. More than 20-year experience in casting and machining

2. Packed with advanced equipment and ready for your OEM projects

3. Best quality control with kinds of testing machine and rich experienced engineers & inspectors.

4. Over 1,000 varieties of products from a 12-year developer

5. Quality system is ISO9001-2008 qualified.

6. Competitive price supplied.

7. Rich experience in packing, loading and arrangement of shipment.

8. One-stop service supplied.

9. Surface of Powder coating, Zinc plating, Hot dip galvanizing & E-coating available

Qingdao Chifine Machinery Co.,Ltd is one famous company in China which specialized in various metal casting products with over 10 years experience located in Qingdao China.It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture,Railway and Engineering

As a professional company, Chifine have four groups of experienced teams to be in charge of different work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service

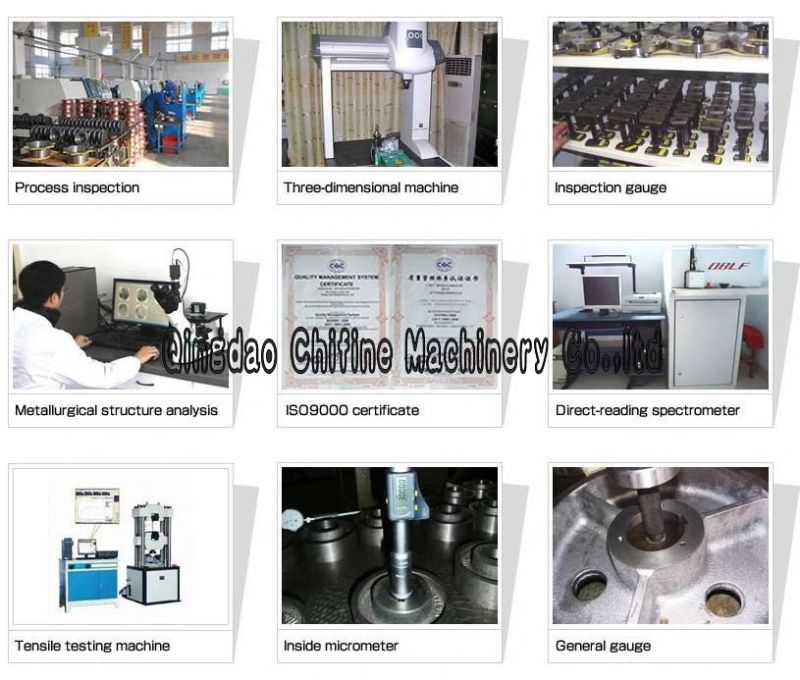

2.Quality Control

We use first-class facilities in the world to control all the processes to offer products with the best component quality and the correct dimension.
Customer's satisfaction is our final target!

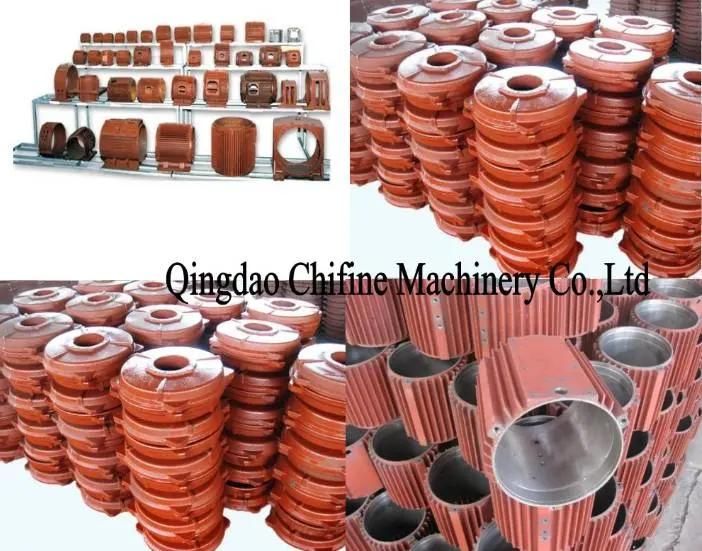

2.Product Show

Item	Description	Material	Technical Process
1	Ductile iron castings	ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
2	Grey iron castings	ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
3	Carbon steel castings	ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting
4	Stainless steel castings	ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting
5	Alloy steel castings	DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting
