• Model NO.：Cusotmized
• Surface Treatment：Dacromat Coating, Finish Painting
• Surface Roughness：Ra0.8-3.2
• Standard：ASTM, ANSI, Ans, BS, DIN, JIS, GB
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customer Request
• Item Name：Industrial Part Bearing Cover Ductile Iron Casting
• Material Available：Ggg50, Option Ggg60, ASTM80-55-06
• Casting Process：Sand Casting, Shell Molding Casting
• Casting Tolerance：CT9-11 for Sand Casting
• Machining Process：Drilling, Milling, Boring etc.
• Rough Surface Roughness：Ra0.8-3.2 for Machining Surface
• Casting Blank Weight：Range From 0.01kg-1000kg
• Package：Multiplayer Wood Box or as Customer Request
• Lead Time：45 Days for Iron Casting
• Service：Metal Parts Solution as Per Customer′s Drawings
• Transport Package：Multiplayer Wood Box with Big Plastic Bag Inside
• Specification：Customized
• Trademark：Matech Industry
• Origin：China Shanghai
• HS Code：8480300000
• Production Capacity：200ton,Month

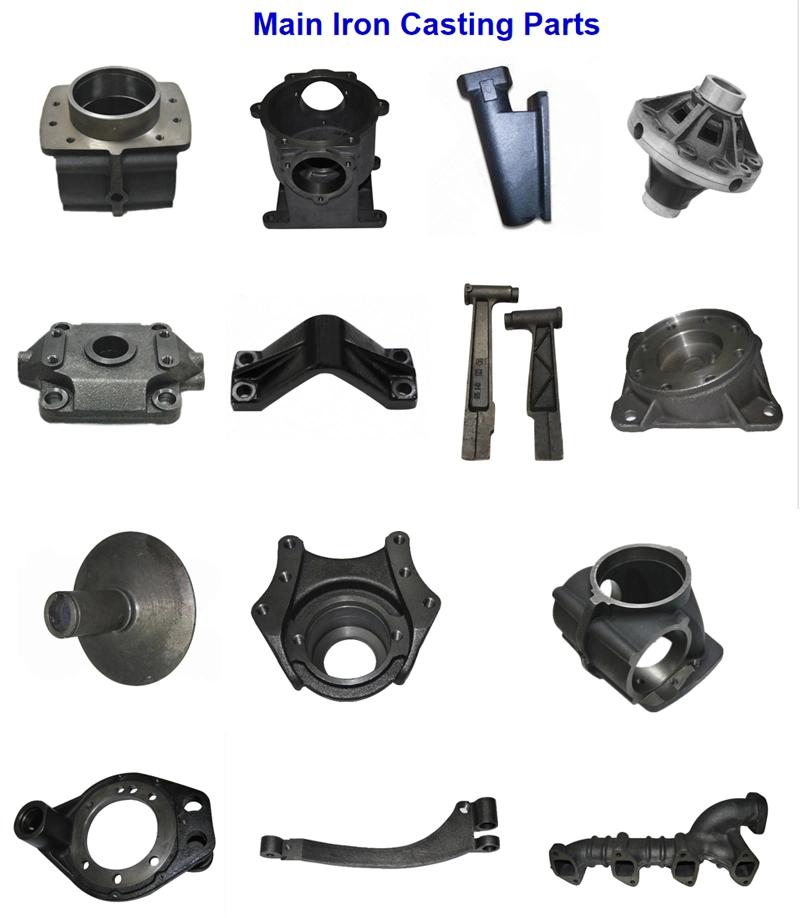

General Products
Application/Service Area

Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.

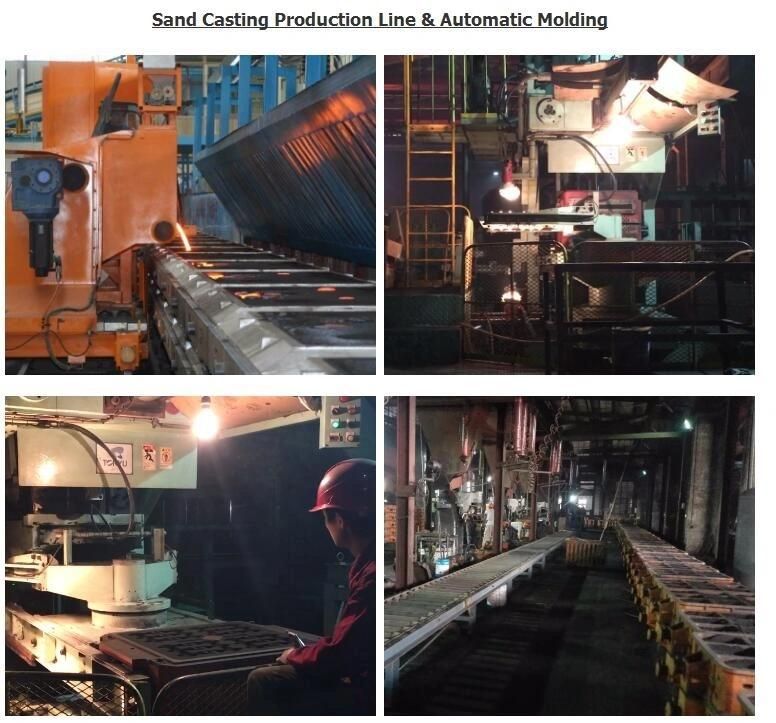

Main blank Process for Casting

Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting

Blanks Tolerance -Casting Tolerance
CT9-10 for Machine Molding Process,
CT8-9 for Shell Molding and Lost Foam Molding Casting Process
CT10-11 for Manual Molding Sand casting Process
Applicable Material

See Table Below (Ductile Iron Casting, Grey Iron Casting)
OR According to customer requirement

Casting Blank Size /Dimensions
2 mm-2000mm / 0.08inch-79inch for casting iron, according to customer requirement
Casting Blank Weight
Range from 0.01kg-1000kg for casting iron
Applicable Machining Process

CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.

Machining Tolerance
From 0.005mm-0.01mm-0.1mm
Machined Surface Quality
Ra 0.8-Ra3.2, according to customer requirement
Applicable Heat Treatment

Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching

Applicable Finish Surface Treatment

Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting.

MOQ
For iron casting : 100pcs
For Machining : 50pcs
Lead Time
45days from the receipt date of deposit for iron casting


Cast iron with nomular graphite
DIN EN 1563
Germany
DIN 1693
France
NF
Great Britain
BS
Netherlands
NEN
Sweden
MNC
USA
ASTM A536
EN-GJS-350-22-LT
GGG-35.3
FGS 370-17
370/17
GN 38
0717-15
----
EN-GJS-400-18-LT
GGG-40.3
----
----
----
----
60-40-18
EN-GJS-400-15
GGG-40
FGS-400-12
420/12
GN 42
0717-02
60-40-18
EN-GJS-400-10
----
----
420/12
----
----
65-45-12
EN-GJS-500-7
GGG-50
FGS-500-7
500/7
GN 50
0727-02
65-45-12/
80-55-06
EN-GJS-600-3
GGG-60
FGS-600-3
600/3
GN 60
0732-03
80-55-06
EN-GJS-700-2
GGG-70
FGS-700-2
700/2
GN 70
0737-01
100-70-03
EN-GJS-800-2
GGG-80
FGS-800-2
800/2


120-90-02
EN-GJS-1000-5 (DIN EN 1564)
GGG-100B/A
----
----
----
----
850-550-10
EN-GJS-AX NiSiCr35 5 2
GGG-
NiSiCr 35 5 2
FGS-
Ni35Si5Cr2
S5S
----
----
Type D-5S


Cast iron with lamellar graphite
DIN EN 1561
Germany
DIN 1691
France
NF
Great Britain
BS
Netherlands
NEN
Sweden
MNC
USA
ASTM A48
EN-GJL-150
GG-15
Ft 15 D
Grade 150
GG 15
01 15-00
20 B / 25 B
EN-GJL-200
GG-20
Ft 20 D
Grade 180/220
GG 20
01 20-00
25 B / 30 B
EN-GJL-250
GG-25
Ft 25 D
Grade 220/260
GG 25
01 25-00
35 B / 40 B
EN-GJL-300
GG 30
Ft 30 D
Grade 300
GG 30
01 30-00
40B / 45 B



Technical Support:

Shanghai Matech is professional at independent development and design. Our engineers are skilled at AUTO CAD, PRO ENGINEER, SOLID WORKS and other 2D & 3D softwares. We are able to design, develop,produce and deliver your PO according to your drawings, samples or just an idea. Dural control of standard products and OEM products.

Quality Control:

1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)
2) Checking the details before the production line operated
3) Have full inspection and routing inspection during mass production---In process quality control(IPQC)
4) Checking the goods after they are finished---- Final quality control(FQC)
5) Checking the goods after they are finished-----Outgoing quality control(OQC)

Our Company

Shanghai Matech Machinery Manufacture Co., Ltd.
--Branch of Matech Industry Ltd.

We specialize in Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system etc.

With keeping manufacturing process design, quality planning, key manufacturing processes and final quality control in house.
We are mastering key competence to supply quality mechanical parts and assembly to our customers for both Chinese and Export Market .

To satisfy different mechanical and functional requirements from our customers we are making a big range of metal products for our clients on base of different blanks solutions and technologies.
These blanks solutions and technologies include processes of Iron Casting, Steel Casting, Stainless Steel Casting, Aluminum Casting and Forging.

During the early involvement of the customer's design process, we are giving professional input to our customers in terms of process feasibility, cost reduction and function approach.

You are welcome to contact us for technical enquiry and business cooperation.

Our Certificate

Our Customer

Our Team

Our Package

Inner Packing →Strong & waterproof plastic big is packed inside, to keep the product in safe condition.
Or as customer requests.


Outer Packing →Multilayer wooden box with strong bandages, used for standard export package.
Or customized as per customer's requirements.


FAQ

1. Are you a manufacturer or a trading company?
We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.

2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost,
and the charge will be deducted from the payment for formal order.

3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied,
the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What's your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
