Customized Valve Body Throttle Body Iron Sand Casting
Qingdao Xinghe Machinery Co., Ltd.- Type：Clay Dry Sand
- Casting Method：Directional Crystallization
- Sand Core Type：Resin Sand Core
- Application：Machinery Parts
- Machining：M,C Machining
- Material：Iron
Base Info
- Model NO.：OEM
- Surface Treatment：Sand Blast
- Surface Roughness：Ra3.2
- Standard：ASME
- Certification：CE, RoHS
- Product：Customized Valve Body Throttle Body Iron Sand Cast
- Technoogy：Casting
- Other Materil：Alluminum , Steel , Iron ,
- Secondary Machining：Tapping, Milling, Grinding
- Post-Process：Heat Treatment
- Surface Treament：Polishing ,Powder Coated , Painted
- Welcome：Drawing of Valve Parts
- OEM and ODM：100%
- Delivery Time：30 Days After Payments
- Transport Package：Carbon Box Then Wooden Crate
- Specification：from 0.1kg to 500kgs
- Trademark：XH
- Origin：Qingdao, Shandong, China
- HS Code：7325109000
- Production Capacity：5000tons Per Year
Description

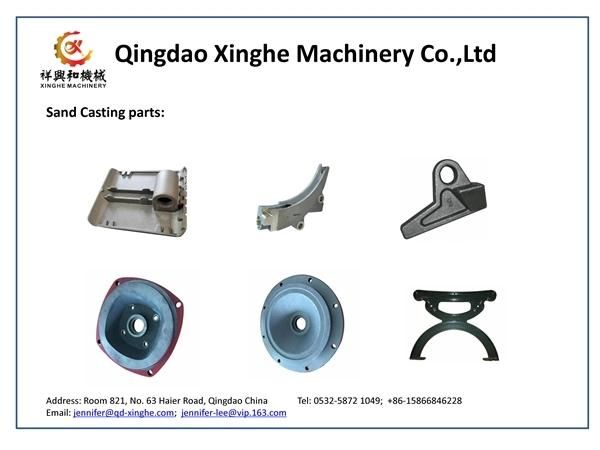

Sand casting
Common material
Gray/Sg /Ductile
Technical parameters
Casting weight range:0.6kg-2000kg
CNC Machined Surface Roughness (Ra/μm): 0.8
Casting Min. Wall Thickness 4mm
Casting Min. Linear tolerance 0.2mm
Casting Min. Position tolerance: 0.3mm
Surface treatment
Sand blasting, shot blasting, painting, polishing, powerd coating , anti-rust plaining ,QPQ or galvanization etc.
Software
PRO/E, Auto CAD, Solid Works, Ug, CAD, CAM
Standard
AISI, ASTM, DIN, ISO, BS, JIS

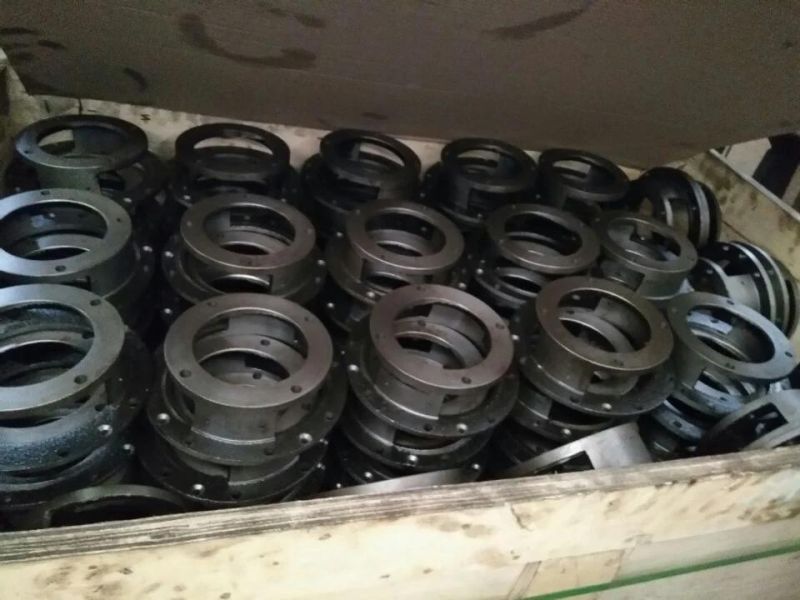

Packing
A. Plastic Bag+ Carton box
B. Plastic Bag+ Carton Box + Wooden Case
C: Packing according to customer design requirement
All our products will be well packed to keep off damage or moisture.
Delivery Days
Nomally 30 days after receiving the prepayment, subject to the volume of the practical order.
Manufacturing & Machining castings in:
Steel casting
Iron casting
Manganese steel
3. The casting process begins with the production of an individual pattern from customer's drawings or samples. Patterns are produced in wood or metal depending on the component and level of details required.
4. Each casting is processed through our QC staff with inspection records for every shipment. To guarantee the correct material specification and right mechanical properties.
5. We provide one-stop service of tooling, casting, heat-treatment, machining and surface finishing
