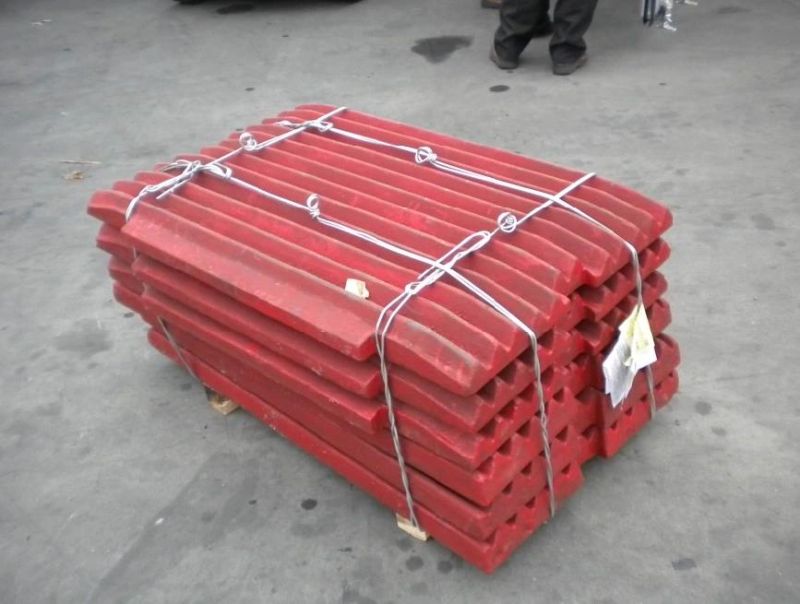

High Quality Jaw Crusher Spare Parts Fixed and Swing Jaw Plate
Shenzhen DENP Industrial Co., Ltd.- Casting Method：Sand Casting
- Casting Form Material：Sand

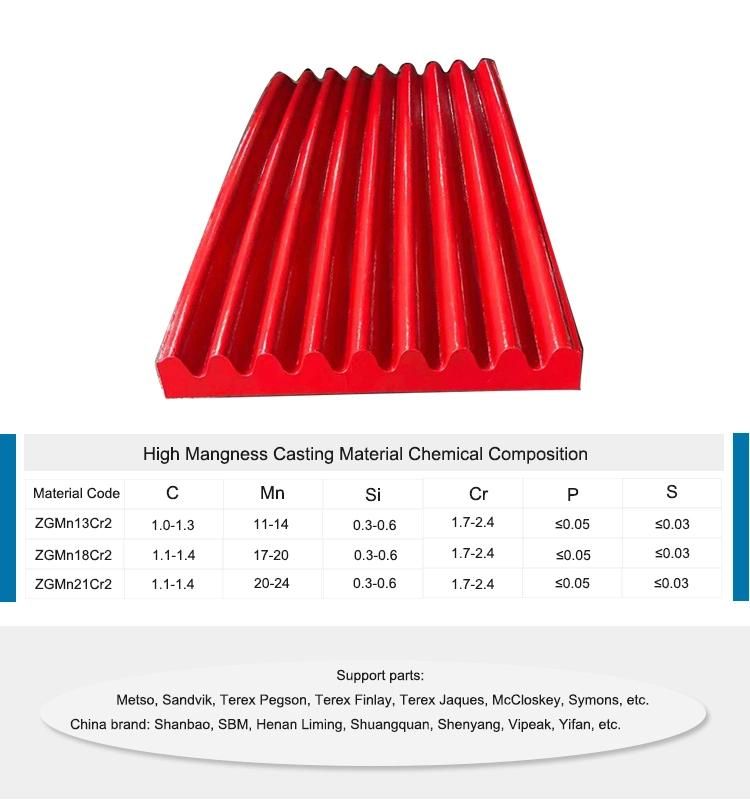

- Casting Metal：High Manganese Steel
- Casting Form Usage Count：Permanent
- Surface Treatment：Polishing
- Standard：GB
Base Info
- Model NO.：PE250x400,PE400x600,PE600x900,PE900x1200
- Certification：ISO 9001:2000
- Color：Customized
- Transport Package：Wooden Tray
- Specification：Export Standard
- Trademark：DENP
- Origin：Shanghai
- HS Code：84742000
- Production Capacity：1000ton,Month
Description
ModelFeed Opening Size Max Feed Size Capacity Motor Power Adjustment Range of Discharge Opening(mm) Eccentric Shaft Speed Weight (t) (mm) (mm) (m³/h) (kw) (r/min) PEX100× 600 100× 600 80 2-8 7.5 7-21 330 1 PEX150× 750 150× 750 120 5-16 15 18-48 320 3.5 PEX250× 750 250× 750 210 8-22 22 25-60 330 4.9 PEX250× 1000 250× 1000 210 10-32 30 25-60 330 6.5 PEX250× 1200 250× 1200 210 13-42 37 25-60 330 7.7 PEX350× 700 350× 700 300 16-35 30 30-80 300 6.5 PEX300× 1300 300× 1300 250 15-55 75 30-80 300 11 PE150× 250 150× 250 125 0.6-3 5.5 10-40 300 1 PE250× 400 250× 400 210 3-13 15 20-60 300 2.8 PE400× 600 400× 600 340 10-34 30 40-100 275 6.5 PE500× 750 500× 750 425 20-52 55 50-100 275 10.5 PE600× 900 600× 900 500 30-75 55 65-160 250 15.5 PE750× 1060 750× 1060 630 72-130 110 80-160 250 28 PE870× 1060 870× 1060 670 160-210 110 200-260 250 30.5 PE900× 1200 900× 1200 750 90-190 132-160 95-180 200 50 PE1000× 1200 1000× 1200 850 197-214 132-160 230-265 200 51 PE1200× 1500 1200× 1500 950 188-500 160-250 150-350 180 100.9 PE1400×1800 1400×1800 1100 288-480 250-315 500-1100 180
