Custom Casting Iron Gantry Milling CNC Machine Body Frame

Qingdao Hailong Machinery Group Co., Ltd.
  • Casting Method:Directional Crystallization
  • Sand Core Type:Resin Sand Core

Base Info

  • Model NO.:HL-C-B20
  • Application:Machinery Parts
  • Machining:CNC Machining
  • Material:Iron
  • Surface Treatment:Polishing
  • Surface Roughness:Ra0.8
  • Standard:AISI
  • Certification:ISO 9001:2000, IATF16949, ISO14001, ISO45001
  • Weight:1kg-20t
  • Test:Full Laboratory Test
  • Finish:Polishing, Anti-Rust Oil or Spray Paint
  • Transport Package:Plastic Bag, Crate or Plywood Tray
  • Specification:Gray iron HT300, HT250, to the requested spec
  • Trademark:Hailong
  • Origin:Qingdao City, Shandong Province
  • HS Code:7325101000
  • Production Capacity:1200 Metric Tons Per Month

Description

Product Name Custom casting iron gantry milling cnc machine body frame Material

Ferrous materials:cast iron, grey iron, ductile iron, austempered ductile iron , carbon steel,stainless steel, low alloy steel, high chromium/manganese steel

Non-ferrous: aluminum alloy, copper alloy,brass, bronze titanium alloy(being built)

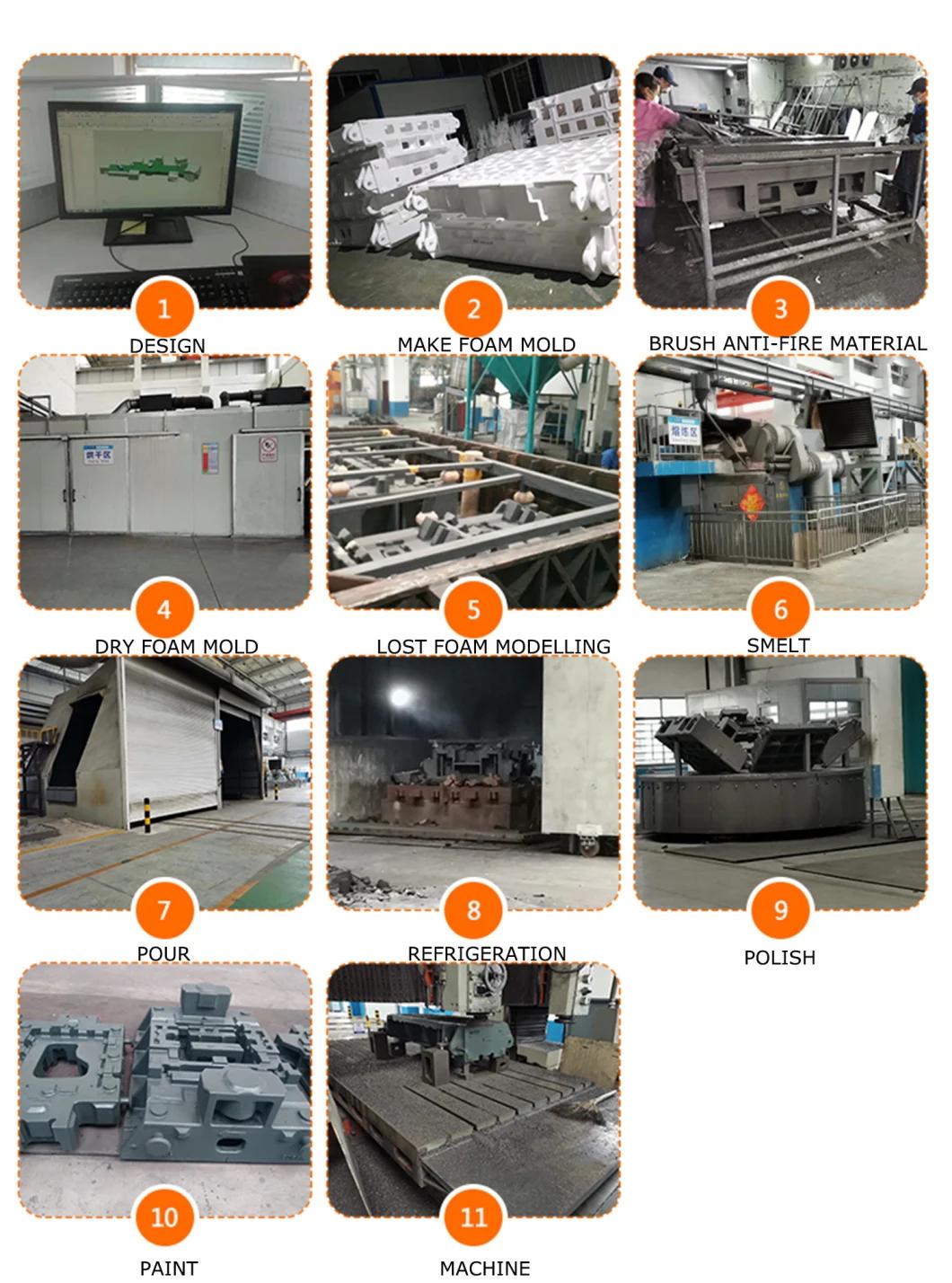

 Process Lost foam casting,Resin sand casting,Wood/Metal Mould Equipment Molding machine, lost foam casting production line, CNC machining center, general machine tools,CNC laser cutting machine,large-scale press machine Finishzinc phosphide, zinc plating, hot dip galvanized, e-coating, spray paint, black oxide coating ,anodized,passivation and othersTesting InstrumentSpectrum analyzer, tension tester, hardness tester, three coordinates measuring instrument, caliper, micrometer, dial gauge, microscope, roughness tester, salt spray testing machine, ultrasonic flaw detector, X-ray detection machine, magnetic particle flaw detector, air tightness testing machine, thickness gaugeProduct ApplicationCNC lathe/milling machine Other main casting products Auto parts,large mining equipment accessories, engineering machinery parts, valve parts, large diameter pipe fittings, , agricultural machinery parts,construction machinery, gear box,body case etc.Custom Casting Iron Gantry Milling CNC Machine Body Frame
  • High precision of casting geometry, stable casting internal structure;
  • No flash, burr and cold separation, uniform and consistent, less casting defects such as sand hole, air hole, shrinkage and loose;
  • High surface finish, less machining allowance and polishing, no casting defects and waste caused by parting and core-making;
  • The molding sand can be reused completely, eliminating the molding sand preparation process and waste sand treatment process;
  • Easy to mechanized and automatic flow production, with high elasticity, and can realize flow production of different alloys and castings of different sizes and shapes on one production line. Factory design is simplified and production cost is reduced.

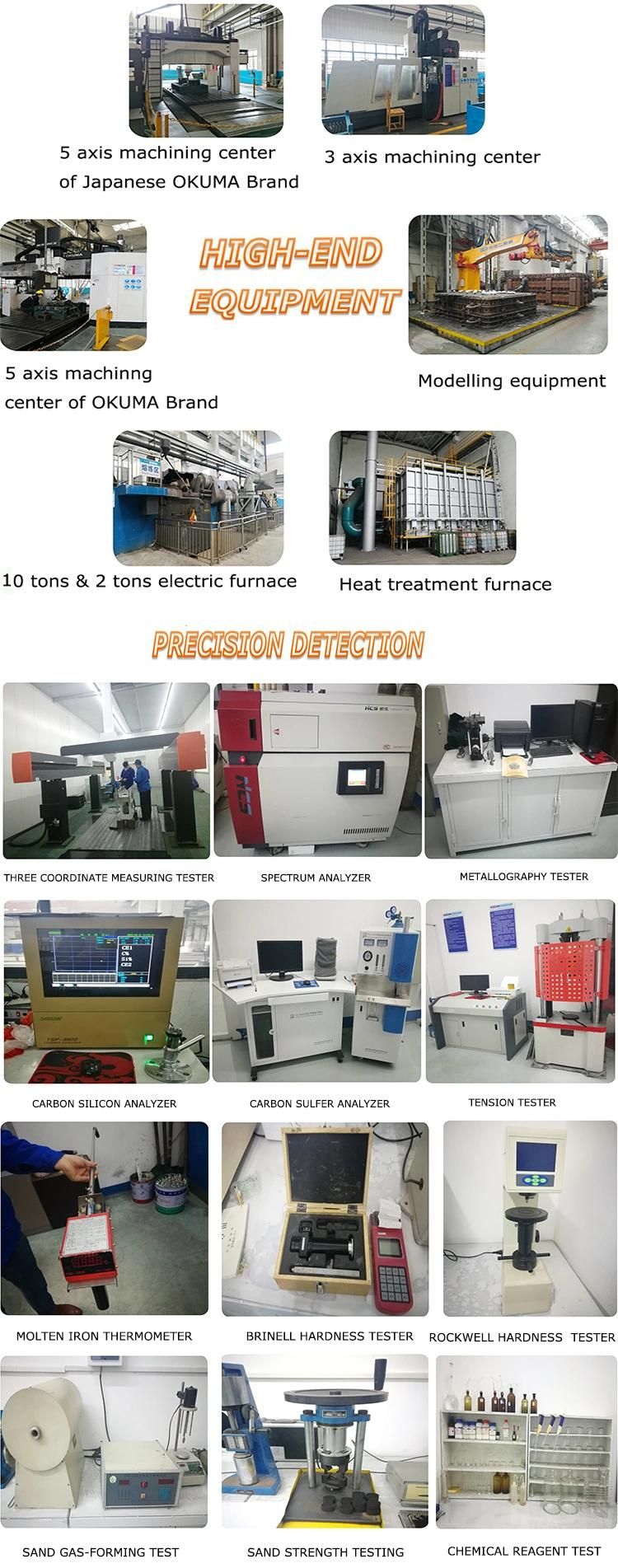

Superior casting products come from excellent equipments and precision detection.
Custom Casting Iron Gantry Milling CNC Machine Body Frame


Custom Casting Iron Gantry Milling CNC Machine Body Frame
Custom Casting Iron Gantry Milling CNC Machine Body Frame
Custom Casting Iron Gantry Milling CNC Machine Body Frame

Custom Casting Iron Gantry Milling CNC Machine Body Frame

Custom Casting Iron Gantry Milling CNC Machine Body Frame
Custom Casting Iron Gantry Milling CNC Machine Body Frame

1. TOTAL AREA & MAIN PRODUCTS

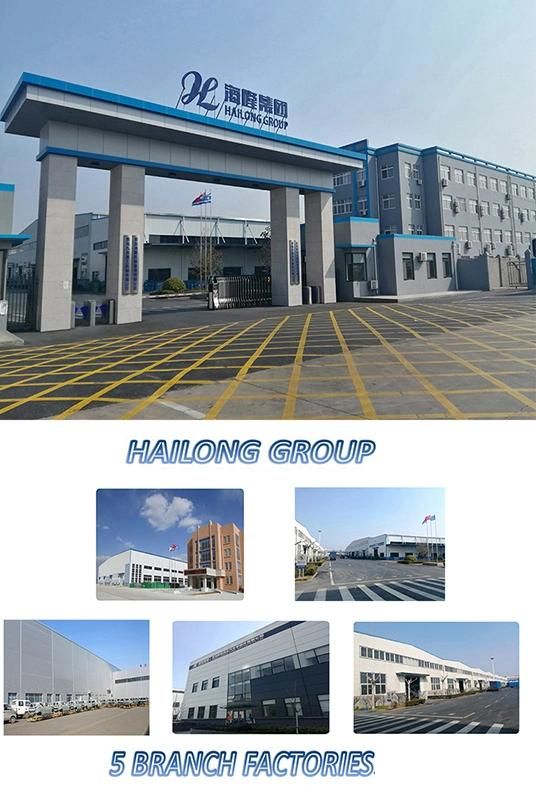

1.1 We are a manufacturer established in 2000 year in Jimo District,Qingdao City

1.2. A total area of more than 500,000 square kilometers and the building area of 300,000 square kilometers with 5 factories included.

1.3 Our main products are casting products,like vehicle mold,machine tool bed ,gear box,worm-gear case,valve body,compressor housing, etc, Auto accessories, stamping parts, truck cabin,truck body etc.

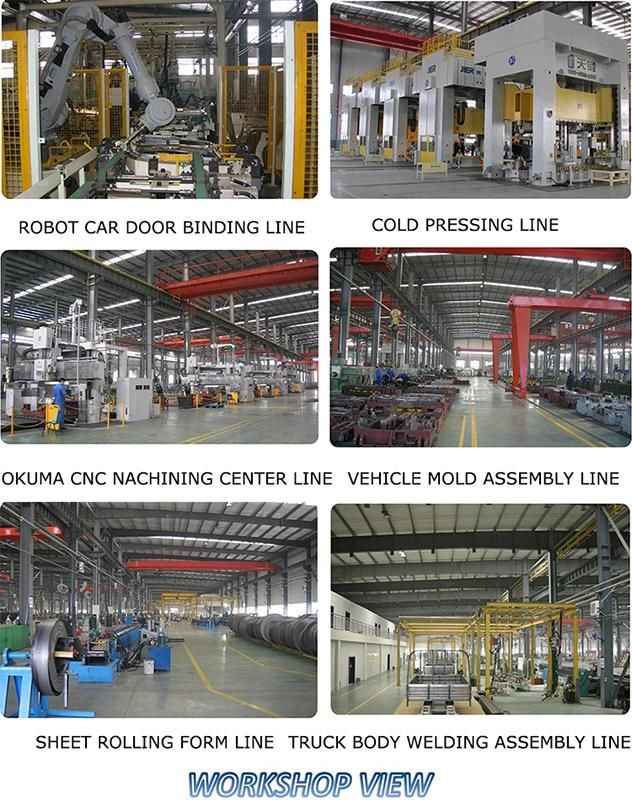

2. EQUIPMENTS

Our company has a full chain production capacity of molding, stamping, welding, assembling and coating. The total asset reaches 1.35 billion yuan.

2.1 Large-scale press/stamping equipments with great tonnage span 160T-2400T, also with small punching machine for small stamping parts.

2.2 ROBOT welding and binding line

2.3 5 center JAPANESE OKUMA CNC machining centers

2.4 Electrophoresis and painting line

2.5 2 tons & 10 tons electric furnace

2.6 Waste collection and dust removal system

3. TECHNOLOGY CENTER

Our technology center was awarded as City-level Technology Center.

3.1 A professional technical team of 40 engineers

3.2 More than 100 domestic patents

3.3 Advanced programming software AUTOCAD,CAM,CAE,CIMATEON,UG etc3.4 Superior engineering equipments and facilities for detection,like Three coordinate measuring instrument ,Spectral analysis,Computer carbon and sulfer analyzer,tryout presses etc.


4. CERTIFICATIONS

4.1 ISO9001-2008:    International quality management system certification

4.2 ISO/TS16949:2009:   Quality management system certification

4.3 ISO14001:   Environmental management system certification

4.4 OHSAS18001:  Occupational health management system

4.5 CCC: China Compulsion Certification(3C)

4.6 AAA corporate credit rating

Custom Casting Iron Gantry Milling CNC Machine Body Frame

5. CUSTOMERS

Our products have been exported to America,India, Africa and other countries and regions. and provide OEM service for domestic customers,such as

FAW Jiefang Automobile,

FAW Jiefang Qingdao Automobile,

SAIC General Motors Dongyue Automobile

Dengfeng Automobile,

BAIC Motor and Beijing Benz Automobile,

and other well-known factories in china.
