• Model NO.：CJ211
• Certification：CE, ISO 9001:2008
• Used for Jaw Crusher：Red
• Wooden Tray Package：High Manganese
• Transport Package：Wooden Tray
• Specification：GB
• Trademark：DP
• Origin：China
• HS Code：84742090
• Production Capacity：5000t,Y

Basic Info.

Model NO. CJ211 Certification CE, ISO 9001:2008 Used for Jaw Crusher Red Wooden Tray Package High Manganese Transport Package Wooden Tray Specification GB Trademark DP Origin China HS Code 84742090 Production Capacity 5000t/Y

Product Description

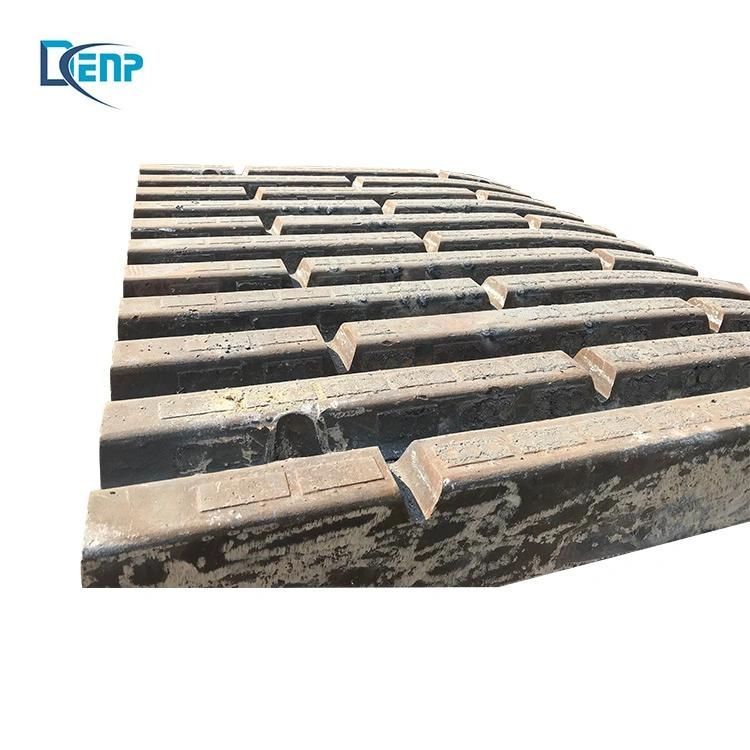

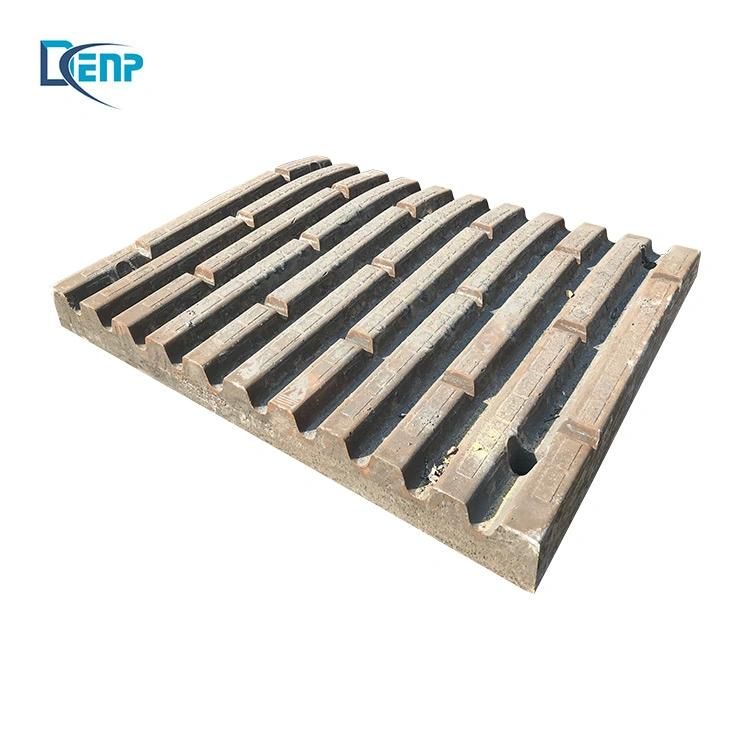

Jaw plates (fixed and swing jaw plate) are the most important wear parts of jaw crusher. We use high manganese steel with chrome as the material to make sure the quality.

Raw materials are crushed to small aggregates between movable jaw plate and fixed jaw plate. So movable jaw plate impacts raw material directly during the operation-time. Supposing that it is damaged, raw materials will impact the movable jaw of jaw crusher and the machine service-life will also be affected.

For more products' details information, please kindly contact us! !

Model	Former  name	Capacity t/h	Feed opening  mm (inch)	CSS range mm (inch)	Max permitted power kW (hp)	Total  weight kg (lbs)
CJ211	J11	80-490	1100 x 700 (43 x 27)	40-200 (1.6-7.9)	90 (125)	14600 (32200)
CJ409	JM907	85-320	895 x 660 (35 x 28)	50-180 (2-7)	75 (100)	14100 (31100)
CJ411	JM1108	150-565	1045 x 840 (41 x 33)	100-225 (3-9)	110 (150)	21700 (47800)
CJ412	JM1208	165-790	1200 x 830 (47 x 33)	100-275 (3-11)	132 (200)	26600 (58600)
CJ612	JM1211	300-805	1200 x 1100 (47 x 43)	125-275 (5-11)	160 (250)	36600 (80700)
CJ613	JM1312	330-960	1300 x 1130 (51 x 45)	125-300 (5-12)	160 (250)	41500 (91500)
CJ615	JM1511	385-1185	1500 x 1070 (59 x 42)	125-300 (5-12)	200 (275)	53000 (116800)
CJ815	JM1513	480-1160	1500 x 1300 (59 x 51)	150-300 (6-12)	200 (275)	64500 (142200)
