• Machining Tolerance：+,-0.10mm
• Mould：1.6kw*2 Sets = 3.2kw
• Power of Lead Scrap Motor：0.4kw
• Total Power：9.7kw
• Grid Range：W*L*T=(100~180)*(250~385)*(1~5)mm
• Power Supply：380V +,- 10%
• Cooling Water：Pipe Diameter:15mm and Outlet Pipe:25mm
• Compressed Air Pressure：0.4~0.6MPa
• Weight：1.85t
• Lead Ladle：900W*4 Set= 3.6kw
• Motor：1.5kw
• Lead Furnace Capacity：0.9t
• Air Exhaust Amount：Not Less Than 0.3m3,Min
• Cooling Water Volume：5-6 M3
• Capacity：12-17 Panels,Min
• Transport Package：Over Sea Export Standard
• Specification：4600mm*1200mm*3150mm
• Trademark：Better
• Origin：China

Basic Info.

Machining Tolerance +/-0.10mm Mould 1.6kw*2 Sets = 3.2kw Power of Lead Scrap Motor 0.4kw Total Power 9.7kw Grid Range W*L*T=(100~180)*(250~385)*(1~5)mm Power Supply 380V +/- 10% Cooling Water Pipe Diameter:15mm and Outlet Pipe:25mm Compressed Air Pressure 0.4~0.6MPa Weight 1.85t Lead Ladle 900W*4 Set= 3.6kw Motor 1.5kw Lead Furnace Capacity 0.9t Air Exhaust Amount Not Less Than 0.3m3/Min Cooling Water Volume 5-6 M3 Capacity 12-17 Panels/Min Transport Package Over Sea Export Standard Specification 4600mm*1200mm*3150mm Trademark Better Origin China

Product Description

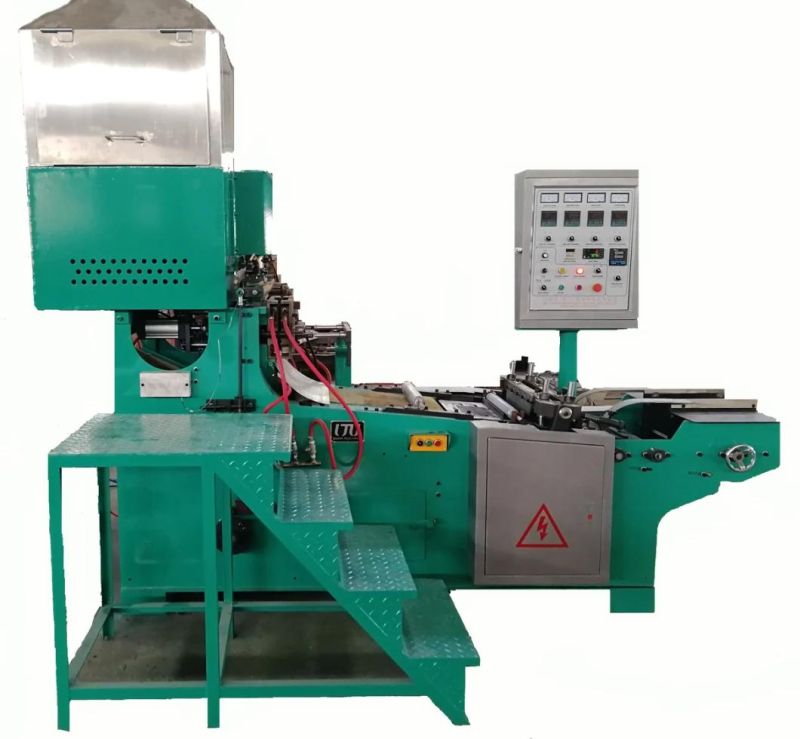

High Furnace Grid Casting Machine (Natural Gas Heating)



This Grid Casting machine can be used for many different lead alloy, it is with high production capacity and good production quality. It adopts advanced technology and with continuous promotion, which can save energy and be easy for control and maintenance.
1. The main motor speed adopts imported frequency converter as stepless speed regulation, continuously variable frequency. The mold open and close and lead liquid supply adopt good quality pneumatic parts.
2. Lead supplying system takes quantitative lead control. Structure is simple. The lead valve spool can stand high temperature and suitable for long using life, which is easy for replacing.
3. The horizontal pull rod structure can ensure the machine move smoothly and reduce blur, so that reduce manual mold spraying to increase the production capacity.
4. Lead scrap recycling device can be optional, which can lower the labor strength.
Specification:

Mould	1.6KW*2 sets=3.2kw
Power for lead scrap motor	0.4kw
Total Power	9.7KW
Grid Range	W*L*T=(100~180)*(250~385)*(1~5)mm
Power Supply	380V±10%
Cooling Water	Pipe Diameter: 15mm and outlet pipe: 25mm
Compressed air pressure	0.4~0.6Mpa
Weight	1.85T
Lead Ladle	900W*4 sets=3.6KW
Motor	1.5KW
Lead furnace capacity	0.9T
Air exhaust amount	Not less than 0.3m³/min
Cooling water volume	5~6 m3
Production Capacity	12~17 panels/min

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Company Profile

Better(Xiamen) power technology co.,ltd is a professional lead-acid battery equipment manufacturer and complete equipment supplier.Our technical team is composed of excellent mechanical engineers and experts in storage batteries.With rich experience in battery manufacturing and mechanical manufacturing in the lead-acid battery industry for more than 30 years,we provide customers with high-end lead-acid battery manufacturing equipment and turn-key solutions for complete equipment, including plate manufacturing - assembling - formation charge - clean and environmental protection system.Also, we can provide raw materials for battery production,battery factory designs, battery product designs and tooling, battery manufacturing technology support, and production management guidance & consultancy for battery manufacturers.

Through the outstanding technology, innovative high-quality after-sales service, perfect supply chain, we expand our business into more than 60 countries around the world and serve more than 200 customers. We have been constantly developing, dedicated to becoming a trusted partner to our customers.

We are looking forward to working with you and creating miracles in the future!
