Dci Steel Rolls for Rolling Mill, Sgp Cast Iron Roll/Mill Roll/Spare Parts/Machine

Tangshan Weilang Trading Co., Ltd.
  • Casting Method：Sand Casting or Special Casting
  • Casting Form Material：Metal or Sand
  • Casting Metal：Cast Iron
  • Casting Form Usage Count：Semi-permanent
  • Surface Treatment：Polishing
  • Surface Roughness：According to The Drawing

Base Info

  • Model NO.：According to the drawing
  • Coating：According to The Drawing
  • Machining Tolerance：+,-0.01mm
  • Standard：GB,AISI,DIN
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • After-Sale Guarantee Period：One Year
  • Delivery Date：60-90 Days
  • Use：Section Mill,Wire Rod Mill,Strip Mill,Billet Mill
  • Our Advantage：Rich Experience, Best Service, Professional Team.
  • Our Customers：Russia,Turkey, Bangladesh, Columbia,Vietnam
  • Exhibition：We Always Attend Some Exhibition in Abroad.
  • Specifications：High Dimension Accuracy, Wear Resistance
  • Our Goal：to Provide Top-Quality Products and Service
  • Plant：We Have Our Own Factory
  • OEM：We Can Also Accept The Trail Order.
  • Transport Package：Metal Pallet or Wooden Case
  • Specification：According to the drawing
  • Trademark：Weilang
  • Origin：China, Hebei
  • HS Code：84553000
  • Production Capacity：1500tons,Month

Description

Basic Info.

Model NO. According to the drawing Coating According to The Drawing Machining Tolerance +/-0.01mm Standard GB/AISI/DIN Certification CE, ISO 9001:2000, ISO 9001:2008 After-Sale Guarantee Period One Year Delivery Date 60-90 Days Use Section Mill/Wire Rod Mill/Strip Mill/Billet Mill Our Advantage Rich Experience, Best Service, Professional Team. Our Customers Russia,Turkey, Bangladesh, Columbia,Vietnam Exhibition We Always Attend Some Exhibition in Abroad. Specifications High Dimension Accuracy, Wear Resistance Our Goal to Provide Top-Quality Products and Service Plant We Have Our Own Factory OEM We Can Also Accept The Trail Order. Transport Package Metal Pallet or Wooden Case Specification According to the drawing Trademark Weilang Origin China, Hebei HS Code 84553000 Production Capacity 1500tons/Month

Product Description


Dci Steel Rolls for Rolling Mill, Sgp Cast Iron Roll/Mill Roll/Spare Parts/Machine
DCI Mill Roll, SGP Cast Iron Roll Description

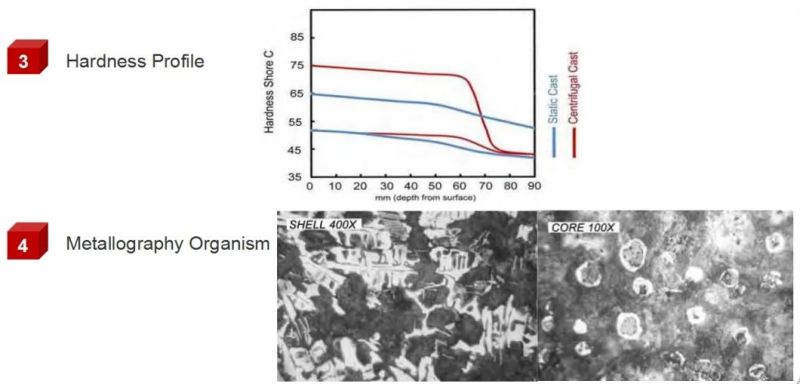

The spheroidal graphite pearlitic iron rolls are widely used in the roughing stands and intermediate stands of various rolling mills. Usually, we make this type of roll by static cast and centrifugal cast. We recommend using centrifugal cast rolls for better performance when the groove in the roll body is not too deep. With more alloy added in, we can get a microstructure consisting of spheroidal graphite, pearlite and primary carbide type M3C up to 30%. Meanwhile, the core of the roll still keeps very strong with a great amount of spheroidal graphite in the matrix of ferrite. When the groove in the roll body is very deep, we recommend using rolls static cast with groove to achieve a low hardness drop between the body surface and bottom of the groove.

Dci Steel Rolls for Rolling Mill, Sgp Cast Iron Roll/Mill Roll/Spare Parts/Machine
Dci Steel Rolls for Rolling Mill, Sgp Cast Iron Roll/Mill Roll/Spare Parts/Machine

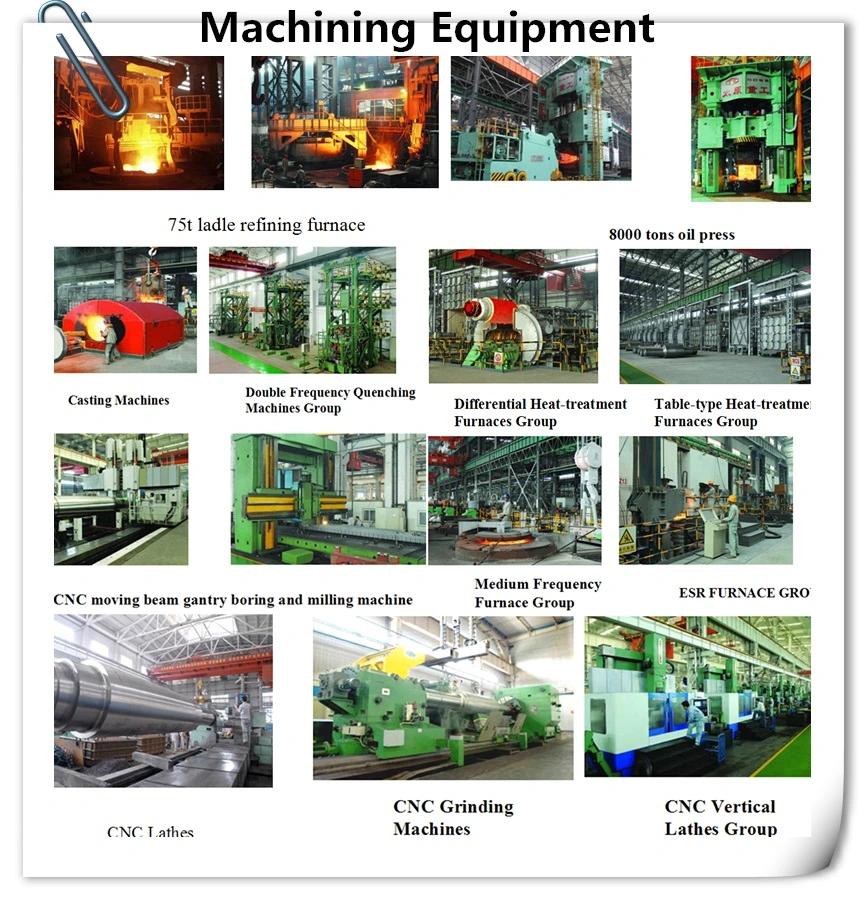

Machining Equipment
Dci Steel Rolls for Rolling Mill, Sgp Cast Iron Roll/Mill Roll/Spare Parts/Machine

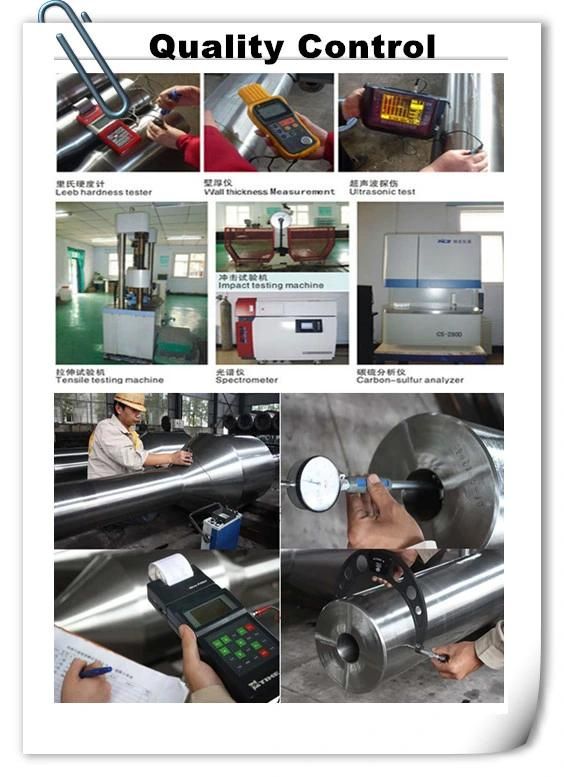

Quality Control
Dci Steel Rolls for Rolling Mill, Sgp Cast Iron Roll/Mill Roll/Spare Parts/Machine

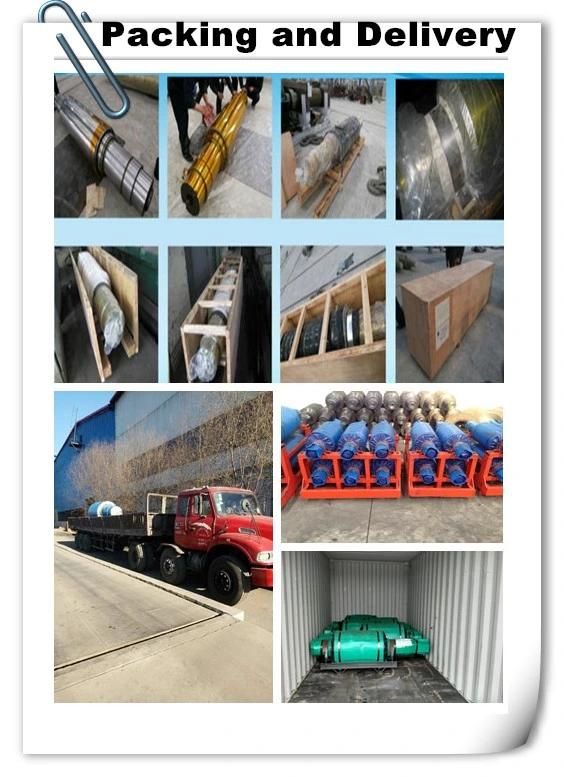

Packing and Delivery
Dci Steel Rolls for Rolling Mill, Sgp Cast Iron Roll/Mill Roll/Spare Parts/Machine
If you are interested in our mill rolls,pls send the detail drawing and technical requirements to us,we will send you prompt reply, professional service and best quotation.
