• Model NO.：25MW-135MW
• Surface Treatment：Machining
• Forging Tolerance：±1
• Standard：GB,ASTM,DIN,En
• Certification：Gjb9100b-2009
• Transport Package：Export Package
• Specification：25MW-135MW
• Trademark：Deyang Wanxin
• Origin：Deyang
• HS Code：8503002000
• Production Capacity：10-200 Pieces

Basic Info.

Model NO. 25MW-135MW Surface Treatment Machining Forging Tolerance ±1 Standard GB,ASTM,DIN,En Certification Gjb9100b-2009 Transport Package Export Package Specification 25MW-135MW Trademark Deyang Wanxin Origin Deyang HS Code 8503002000 Production Capacity 10-200 Pieces

Product Description

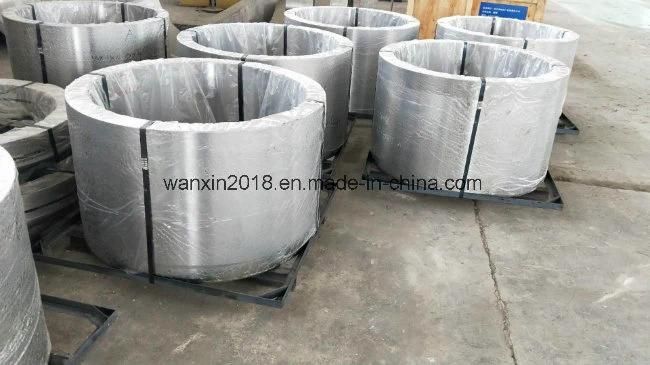

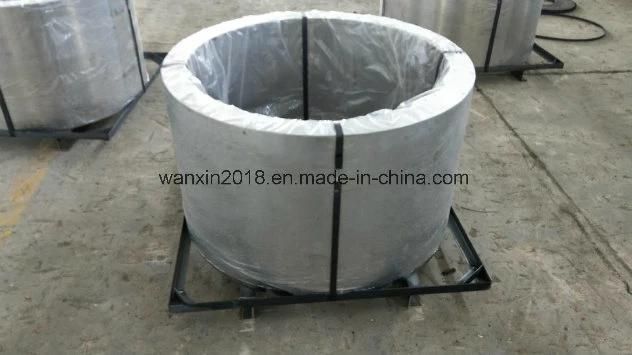

Nonmagnetic retaining ring is a critical component of heavy turbonator, one of the components bearing the highest stress, and by means of the retaining ring the centrifugal force is borne on the location of turning of the coil block on the both ends of the rotor.


The retaining ring is hot assembled on the both ends of the rotors to compact the coils on the ends to prevent the coils of rotors during high speed operation from runaway damages which might cause disastrous accidents to the power stations.

Specification:


Material standard:	GB, ASTM, AISI, ASME, DIN, BS, EN,JIS
Material:	Non-magnetic Stainless Steel, Alloy Steel
Forging machine:	Electric-arc Furnace,Sawing Machine,Electric Slag Furnace,8000T Press Machine, Forging Dies
Main Process:	Material(Electric Furnace Smelting + Elctrode Rod Discard+ ESR+ Forging)+rough machining + Solution heat treatment + Cold expanding + Stress relieving heat treatment+ Final machining +Inspection(mechanical properties testing+ NDT)
Test equipment:	Tensile testing machine, Impact testing  machine, Grinding Machine, Chemical testing Machine, Magnetic permeability testing machine, Grain size testing machine, UT machine, PT testing material.

We can manufacture all kinds of the retaining ring and also can manufacture according to the custmer's specific requirements.
