Flush Joint 300mm Cast Steel Concrete Pipe Mould Pallet

Shijiazhuang Casiting Trading Co., Ltd.
  • Type：Chemical Hardening Sand
  • Casting Method：Thermal Gravity Casting
  • Sand Core Type：no sand core
  • Application：concrete pipe mould part
  • Machining：CNC Machining
  • Material：Steel

Base Info

  • Model NO.：FJ300-S
  • Surface Treatment：Polishing
  • Surface Roughness：Ra3.2
  • Standard：customer
  • joint type：flexible tongue* groove flush joint
  • pipe joint end：flexible flush joint
  • size：DN 300mm
  • pipe end type：tongue&groove
  • Transport Package：Package
  • Specification：300mm to 1800mm
  • Trademark：OEM
  • Origin：Hebei China
  • HS Code：84802000
  • Production Capacity：3000pieces,Year

Description

material:30MnSiMo; ZG45#casting tolerance:+-0.5melting furnace:electric-arc furnacemachining tolerance:+-0.5casting techonogy:water glasscasting finish (Ra.):6.3annealing process:yesmachining finish (Ra.):≤3.2

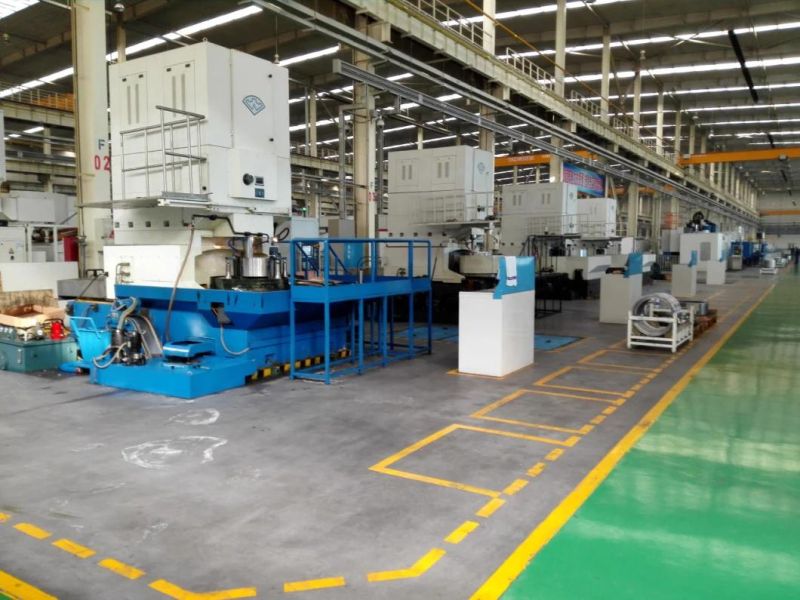

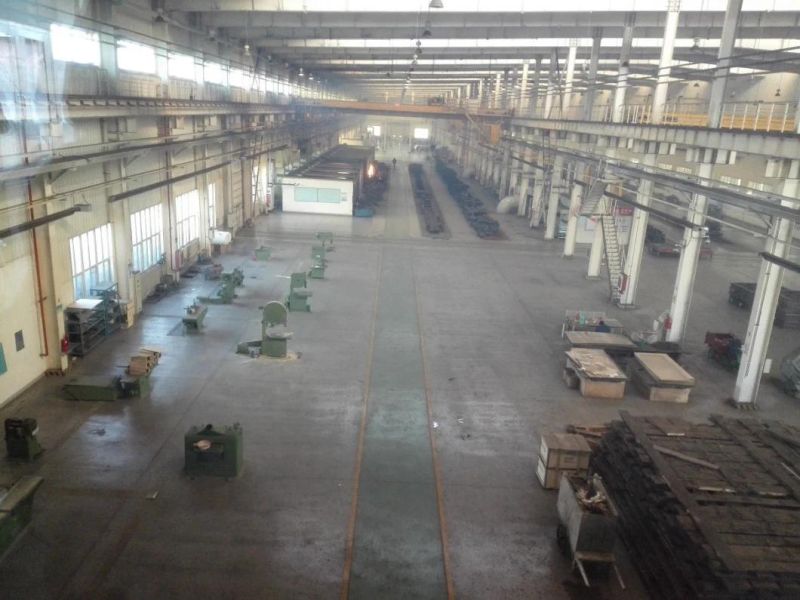

A view of our factory:
Flush Joint 300mm Cast Steel Concrete Pipe Mould Pallet
Flush Joint 300mm Cast Steel Concrete Pipe Mould Pallet
Flush Joint 300mm Cast Steel Concrete Pipe Mould Pallet

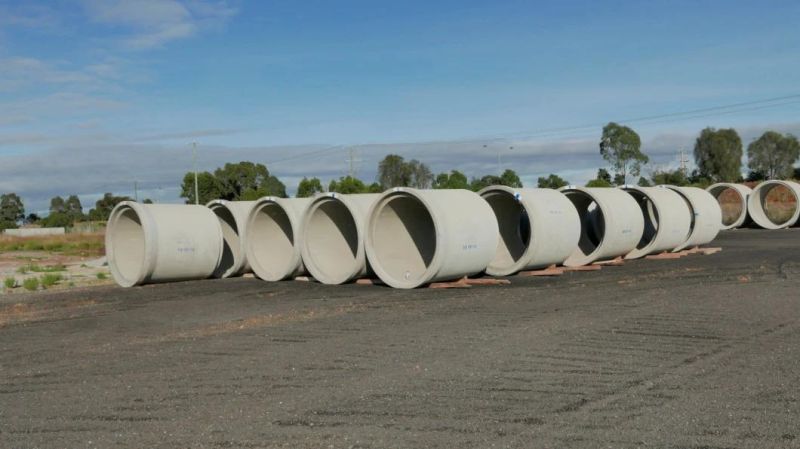

The finished reinforced concrete pipe made by the mould with the pallets
Flush Joint 300mm Cast Steel Concrete Pipe Mould Pallet
