Automatic Foundry Sand Casting Molding Machine
Qingdao Berry Cast Technology Co., Ltd.- Type：Clay Wet Sand
- Casting Method：Directional Crystallization
- Sand Core Type：Clay Sand Core
- Application：Agricultural Machinery Parts
- Machining：CNC Machining
- Material：Iron
Base Info
- Surface Treatment：Spray-Paint
- Surface Roughness：Ra1.6
- Standard：ASTM
- Certification：ISO 9001:2000
- Transport Package：Wood Plate
- Trademark：Berry cast
- Origin：Qingdao, China
- HS Code：8454309000
- Production Capacity：50 Set Per Year
Description
Sand mold size(mm)610*508*130-180 700*600*130-180 800*700*200-250 1000*800*200-280 660*508*130-180 660*600*130-180 800*800*200-250 1000*1000*200-280 Productivity(s/mold) 40-45 40-45 50-55 55-60 Compaction pressure(Mpa) 0.7-0.9 0.7-0.9 0.7-0.9 0.7-0.9 Air consumption(m³/Min) 1 1.2 1.6 2 Wokring oil pressure(Mpa) 10.6 9.2 8.9 8.5 Power(Kw) 15 18.5 22 30 Sand consumption(T/h) 10.5-17ton/hour 12-22ton/hour 23-30ton/hour 30-40ton/hour
Users' instructions
a)Machine lifting instruction
Please use the lifting device with 10ton capacity or above .
b)Gating system and gate stick selection
There are nos 9 pouring gate. If he offset template is used, the height of the gate rod support seat or the gate length needs to be changed
c)Sand mixture
1.original sand
1) original sand
Generally adopt No6 silica sand, for a requirement of good casting surface, sometimes use the No7 silica sand.
2)additives
Bentonite: when selecting additives, in addition to the characteristics of the machine, the ability of the object products (pouring weight and shape, etc.) and the disassembly of the sand box should be considered.
Coal power:normally adopt 8% dust coal.
2 .sand mixture specification
1)water:3~4%
2)CB data:33~39% (during the sand supplying, should adjust the CB data reasonably)
3)Compression strength:10~14N/cm2(1.0~1.4Kg/cm2)
4)Betonite total amount:10~12% (in order to ensure the Water, prevent the CB changing.
Reference specification:
5)breathability: above 120
6)Lg-Loss:3~4%
7)Active clay composition:6~8%
8)surface stability:above 85%
3.additives adding reference value
Bentonite 0.3~0.6%
Coal powder 0.05~0.15%
4.Original material reference value
1)silica sand
Sio2 purity:above 95%
Mesh:equal to AFS62
Mesh distribution:200mesh,280mesh,PAN total: under 0.1%
2)Bentonite
montmorillonite content: NA element base 90%
water:8~10%
granular:200mesh,Through:75~85%
PH:8.5~10.5
3)coal powder
Ash: under 8%
Volatiles:42±3%
Fixed carbon:48±3%
granular:200mesh,through:above 50%, 35mesh,through 5%
a)Sand mixture composition
Original sand:100
Bentonite:7.5
Coal power:2
Powder:0.5
About Delivery and Shipment

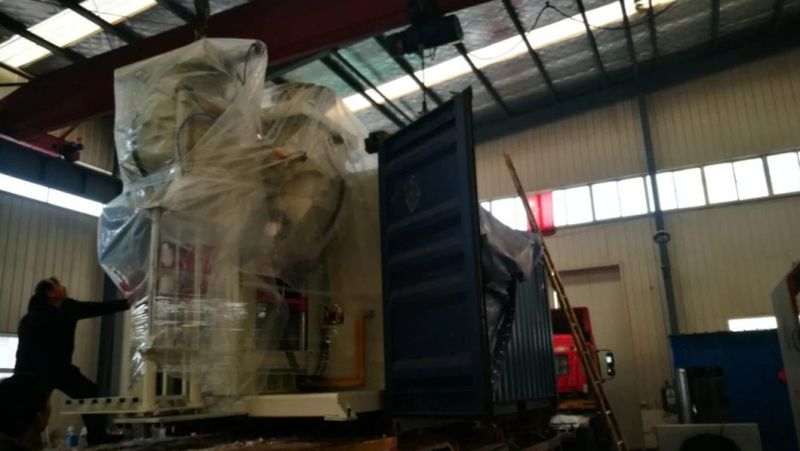

Considerate and good packing: equipment painting is completed before shipment. The machine body is covered with stretch film to avoid rub off the surface paint. The machine is generally packed by wood case as per customer's requirement. As for the important key parts such as electric cabinet is packed with shockproof packaging material and then packed in wooden cases.
We has long-term with ACL, CSCL, CCNI,CNC, COSCO etc insure the goods to the port on time
FAQ
1.Delivery lead time
--As for standard machine, we have some in stock,it can be delivered asap receiving deposit.
2.Our production quality control?
--We have ISO9001, and follow the PDCA rules, 6S on-site management. Every machine will be fully assembled and carefully tested before shipment.
3.What's your machine quality guarantee?
--The machine adopts world famous brand components to keep in perfect working condition.Quality guarantee time is 12 months, during this time,we provide free spare parts if it is broken as non-human factor.
4.Are you able to give installation and commissioning overseas?How long will it takes?
--Yes,we supply overseas service. And the engineers' board and lodging expense shall be borne by customers.
--It usually takes about 20 days finish the commission and trial running.
--For standard item, we can provide assemble and install video for guidance.
5.How can I trust you to delivery the right machine as I ordered?
--Our company's culture is honesty and quality. We have been in exporting for 9 years. We won customer's trust depending on our good products and service. We are certified by SGS, and Made-in-China. We will take video and pictures to you when the machine is finished and during the loading to let you make sure the right machine as you ordered.
