Gas Fired Radiant Heater Tube Assembly 2.4879 Mo-Re2 Hx61063

Qingdao Hexin Machinery Co., Ltd.
  • Casting Method：Special Casting
  • Casting Form Material：Metal
  • Casting Metal：Cast Steel
  • Casting Form Usage Count：Permanent
  • Surface Treatment：Sand Blast
  • Surface Roughness：Ra6.3

Base Info

  • Model NO.：HX61063
  • Coating：Talcum powder
  • Machining Tolerance：+,-0.01mm
  • Standard：ASME
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Transport Package：Wooden Case
  • Specification：OD194, OD197, OD200, OD216mm, OD300mm or according
  • Trademark：HEXIN
  • Origin：China
  • HS Code：85149090
  • Production Capacity：5000pieces,Year

Description

Itemgas fired radiant heater tube assembly with precision cast return bends insulation refractory materials 2.4879 More2 HX61063 ProcessCentrifugal/spun casting method for tube sections, investment casting for the elbows or bends ,hangers, welding and machining.ShapesU-type, W-Type, 0-Type, P-type, L-Type,S-Type, Straight-type, Electric radiant tubes.MaterialHigh Nickel and high Chrome heat resistant alloys, Cobalt base alloys, like.
HU,HT,HK,HP,HW,24/24NbTiZr,50Cr/50Ni(2.4813),1.4865,1.4849,1.4848,1.4410,1.4059,
1.4841, 1.4845,1.4852, 2.4879 or as per customer's requirementsApplicationThe radiant tubes are  working at high temperature environment  on average: 800-1200ºC,
most of them are  used for indirect heating to furnace  like  CAL(continuous annealing line)
CGL,(Conginious galvanizing line).SpecificationsOuter diameter: 55mm-580mm
Thickness: 5mm,6mm,7mm or customized
Length: as per your requestTestChemical analysis by spectrometer for each heat,eddy current test,pressure test ,thickness test , PT 100%(liquid penetrant test),VI(visual inspect)100%,dimensional check.ProductsU radiant tubes

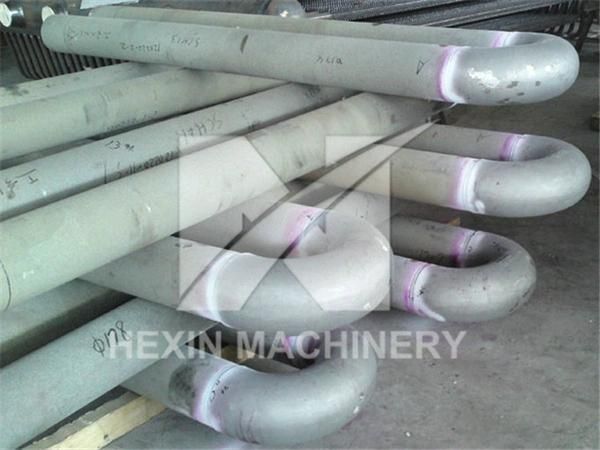

W radiant tubes
Straight radiant tubes
Electricity radiant tubes
Special radiant tubes
Gas Fired Radiant Heater Tube Assembly 2.4879 Mo-Re2 Hx61063
Gas Fired Radiant Heater Tube Assembly 2.4879 Mo-Re2 Hx61063



About us

Qingdao Hexin Machinery Co., Ltd. is professional for manufacturing, sale and research of high temperature alloy centrifugal cast tube, Heat resistant steel precision castings and sand mold casting.
The main products are: Ethylene cracking furnace furnace tube, reformer furnace tube, all kinds of casting alloy elbow, casting tube sheet, hook, hanger, bracket and other heat resistant casting products. Furnace rollers, radiant tubes, sink roll, stabilizing roll, support arm and sleeve and other heat resistant alloy used for continuous galvanizing line(continuous annealing line), all kinds of heat treatment fixtures used for heating processing equipment, like tray, basket, fan and so on. Widely used for famous brand heat treatment equipment, such as IPSEN, AICHELIN, FONTON, etc.
We committed to the strict quality control and strictly implement ISO9000 series quality management system, Ensure the castings in each process of each station "zero defect" production, Quality has won the acceptance of customers at home and abroad.
