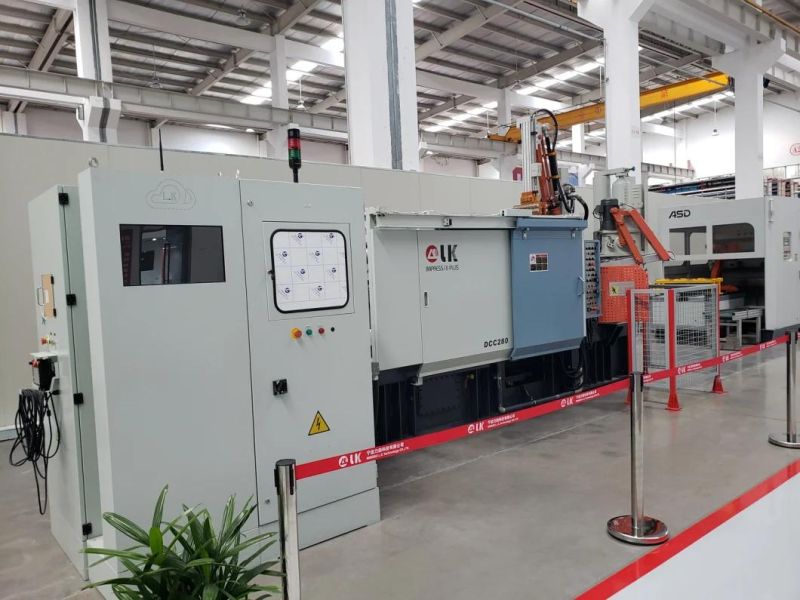

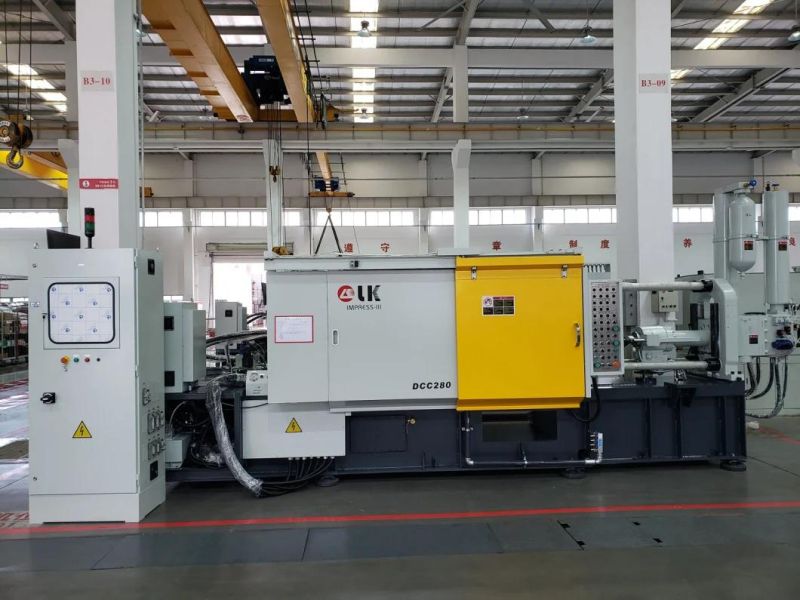

LK-280T Cold Chamber Standard Aluminum Alloy Die Casting Machine
K&E Machinery (Ningbo) Co., Ltd.- Die Casting Machine Type：Cold Chamber Die Casting Machine
- Die Casting Method：Precision Die Casting
- Application：Auto Parts
- Material：Aluminum Alloy
- Pressure Chamber Structure：Horizontal
- Certification：CE, ISO 9001:2000
Base Info
- Model NO.：DCC280
- Certificate of Origin：1
- Certificate of Fumigation：1
- Packing List：1
- Commercial Invoice：1
- Easy Broken Parts：1 Sets
- Transport Package：Wooden Pallet
- Specification：6300x1810x2600
- Trademark：LK
- Origin：China
- HS Code：8454301000
- Production Capacity：500,Y
Description
Position transducerGermany NOVO Italy GEFRAN
| No | Item | Description |
| 1 | Painting color | white + yellow |
| 2 | Language | Chinese+English |
| 3 | Operation manual | 1pcs |
| 4 | Display touch screen | 7'OMRON |
| 5 | Hydraulic system | Pressure&flow dual proportion |
| 6 | Mould open&close system | Hydraulic control for fast speed mould close and backpressure of mould open |
| 7 | First stage injection speed adjustment | Pressure &flow intelligent adjust on the touch screen |
| 8 | Second stage injection speed adjustment | Manual adjustment |
| 9 | Third stage high speed asjustment | Manual adjustment |
| 10 | Injection pressurized speed adjustment | Manual adjustment |
| 11 | Mould open&close stroke control | Position transducer |
| 12 | Injection strokecontrol | Non-contact magnetic railing ruler |
| 13 | Ejector pin stroke control | Proximity switch |
| 14 | Accumulator pressure control | Pressure sensor |
| 15 | Core-pulling valve | One set on the movable platen |
| 16 | Stroke switch and wire connection | One set |
| 17 | Core pulling system | Core insering or pulling out can set on screen |
| 18 | Core pulling spray | All core pulling can be sprayed |
| 19 | Core pulling for squeeze pin function | Core pulling can be for squeeze pin function |
| 20 | Die height adjustment | Hydraulic gear manual adjustment |
| 21 | Plunger lubriation | Particle hammerhead lubriation device /oil-drop lubrication |
| 22 | Main Electric cabinet cooling way | Cool fan |
| 23 | Scrap collect pan | Scrap collect pan under the injection position |
| 24 | Power voltage | Fllow custoemr require |
| 25 | Operation circuit voltage | DC24V |
| 26 | Oil level detection | Visual check on the temperature scale |
| 27 | Oil temperature detection | Visual check on the temperature scale |
| 28 | Hydraulic oil type | 68#anti-wear hydraulic oil |
| 29 | Front and back safety door | Manually |
| 30 | Adjust Foot block | Foot locking bolt with block ,Hsteel adjust block with nut |
| 31 | Ladler connector | Reserved |
| 32 | Sprayer connector | Reserved |
| 33 | Extractor connector | Reserved |
