Aluminum Zinc Alloy ADC12/A380/A356+T6 High Pressure Die Cast Aluminum Die Casting ...
Qingdao Chengenxin Industry and Trade Co., Ltd.- Die Casting Machine Type：Cold Chamber Die Casting Machine
- Die Casting Method：Precision Die Casting
- Application：Auto Parts
- Machining：CNC Machining
- Material：Aluminum Alloy
- Surface Preparation：Deburring
Base Info
- Model NO.：CEX-01
- Pressure Chamber Structure：Horizontal
- Tolerance Grade：6
- Casting Surface Quality Level：1
- Certification：CE, RoHS, ISO 9001:2000
- Equipment：200-1100t Casting Machine
- Surface：Trimming, Deburring,Polishing, Shot Blasting
- Type of Material：A356.2
- Process：Squeeze Casting , Liquid Forging
- Advantage：High-Strength High Density

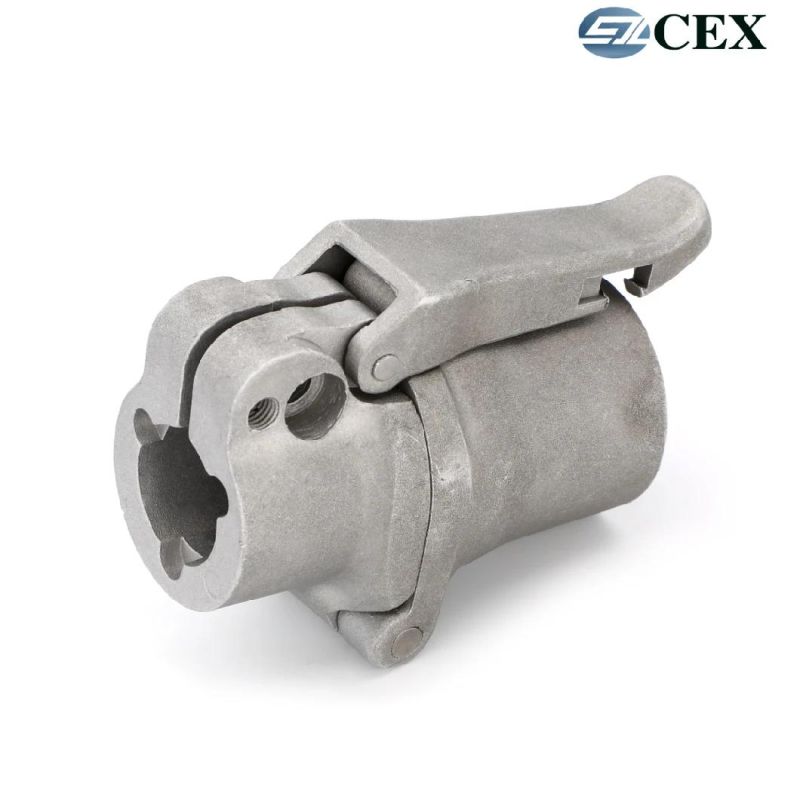

- Description：Die Casting Motorcycle Parts
- Transport Package：Carton
- Specification：OEM
- Trademark：CEX
- Origin：Qingdao, China
- HS Code：7616991090
- Production Capacity：1000tons,Month
Description
1. 20 Years Aluminum alloy die casting Manufacture Experience. 2.10 Years Export Experience
3. Mould developed by ourself
4. With 160-1100T Die Casting Equipment
5.One-Stop Service , Machining --Powder Coating--Assembly service all be available .
Product parameter
| Process | Aluminum Die casting, Squeeze casting+T6, Zinc Alloy die casting,CNC machining, Turning |
| Equipment | Cold chamber die casting machine:200T/280T/400T/600T/800T/1100T.CNC centers, CNC turning, CNC lathes, electrical pulse, line cutting, milling, drilling, grinding |
| Material | A319, A356, A360, A369, A380, A383, A384, A413, A535, 44300, 44300, 46000, AlSi9Mg, AlSi9Cu3, ADC12, ZL102, ZL104, ZL108, Zamak2,3,5,7 ect. Squeeze Casting: A356+T6, A356.2+T6, AlSi9Mg+T6, Zl108+T6, AlTi-Alloy+T6 |
| Surface | Trimming, Deburring,Polishing, Shot blasting, Sand blasting,Tumbling, Powder coating, Anodizing, Chrome, Zinc, Electrophoresis, Passivation, Chemical coating. |
| Software Assistance | Pro-e/Solid work/UG/Auto CAD/CATIA |
| Products Application | Automotive industry, Bicycle and motorcycle, Door and windows and furniture, Household appliance, Gas meter, Power tool,LED lighting, Medical instrument parts, ect. |
Other Assistant Equipment
-Precision CNC lathes
-Milling machines
-Ultrasonic welding machines
-Avarious auxiliary processing machinery.

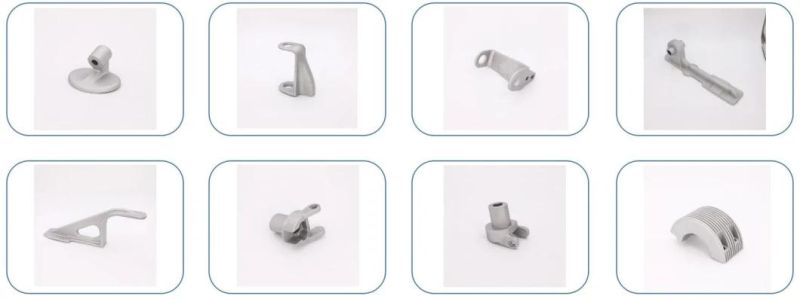

Product Show
Our Equipment
-Die-casting equipment (200T-1100T Casting Machine )
-injection molding equipment
-Precision CNC lathes
-Milling machines
-Ultrasonic welding machines
-Avarious auxiliary processing machinery.

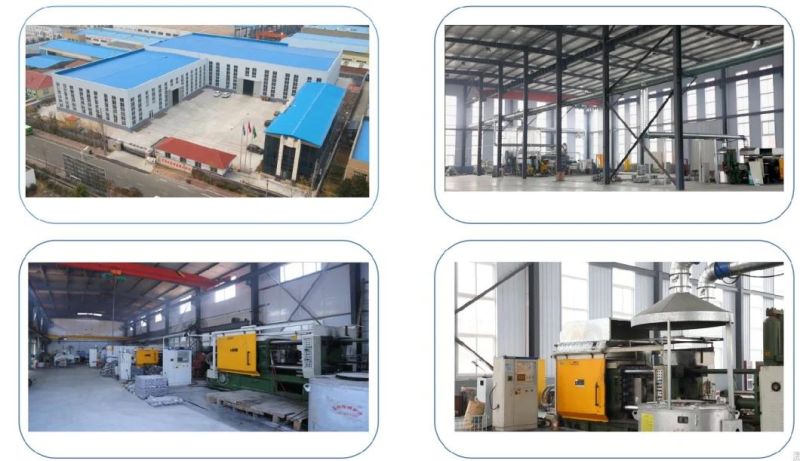

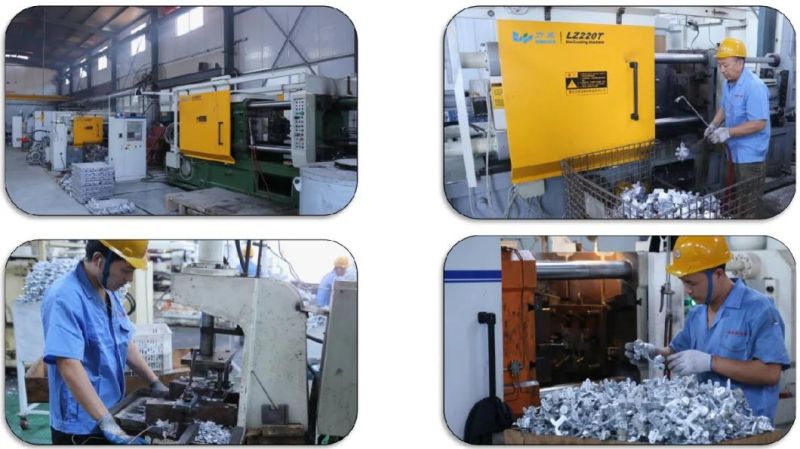

Factory Workshop
Our New Porcessing Technology -Squeeze Casting
Aluminum alloy Liquid forging also called Squeeze casting. The principle is to fill the molten or semi-molten metal or alloy in the mold cavity, and then apply high pressure to plastically deform the solidified metal. The unsolidified metal is subjected to isostatic pressure and high-pressure solidification occurs at the same time then get the parts or blanks, T6 heat treatment can be performed to obtain high-strength, high-precision parts.
Process Advantages
1) Good roughness like die casting & precision casting; 2) Parts with high-accuracy like die casting & precision casting; 3) No more material costs and extra machining, better than forging; 4) Can be T6 treatment, better than die casting, and like forging; 5) Parts with High Sealing Property; 6) High mechanical property like forging, and better than investment casting or sand casting.

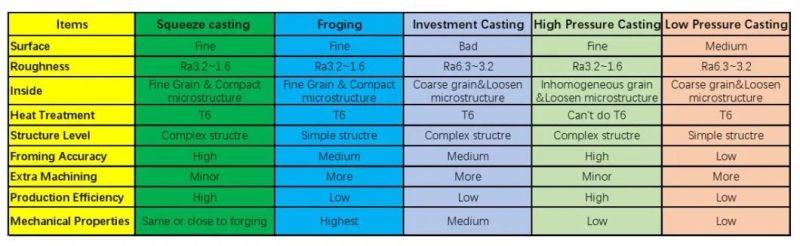

Comparison between different processes:
Squeeze casting parts' mechanical propertyAfter T6, the mechanical property of squeeze casting parts could be very high. Mechanical property comparison of the squeeze casting parts from different materials:
Wide Application:
With the current emphasis on reducing materials consumption through virtually net shape processing and the demand for higher-strength parts for weight savings, the emergence of squeeze casting as a production process has given materials and process engineers a new alternative to the traditional approaches of casting and forging. By pressurizing liquid metals while they solidify, near-net shapes can be achieved in sound, fully dense castings. Squeeze casting is simple and economical, efficient in its use of raw material, and has excellent potential for automated operation at high rates of production. The process generates the highest mechanical properties attainable in a cast product. The microstructural refinement and integrity of squeeze cast products are desirable for many critical applications.

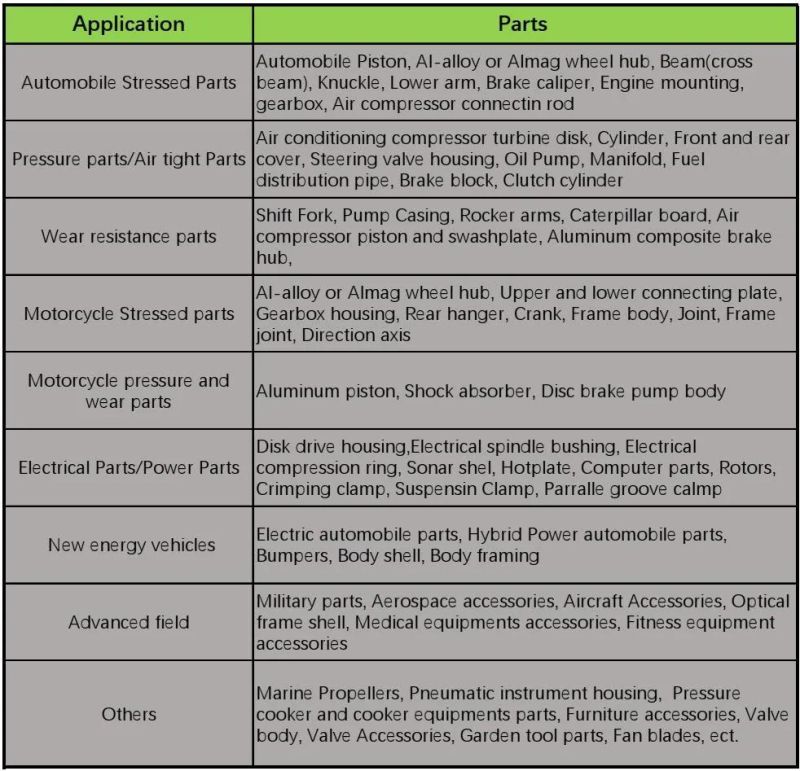

Application Range:
Packing
Why Choose us ?
--20 Years Aluminum Die casting Experience .
--Drawings--Mold development--Casting production--Surface treatment one-stop service .
--Manufacture factory with Competitive price , Higher quality .
--Leading domestic aluminum alloy squeeze casting technology .
FAQ
1. How can I get the quotation?
Please send us information for quote: drawing, material, weight, quantity and request.
2. If we don't have drawing, can you make drawing for me?
Yes, we make the drawing of your sample and duplicate the sample.
3. When can I get the sample?
Sample: 15-20days after you start to make mold. The accurate time depends on your product.
4. What is your main order time?
Order time:20-25 days after the payment. The accurate time depends on your product.
5. What is your payment method?
Tooling: 100% TT advanced.
Main order: 50% deposit, balance 50% to be paid before shipment.
6. Which kind of file format you can read?
PDF, ISGS, DWG, STEP, MAX..
