• Model NO.：Customized
• Coating：Zinc oxide
• Machining Tolerance：0.005mm-0.01mm-0.1mm
• Standard：According to Customer Requirement
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customer Request
• Material：Ggg50, Option Ggg60, ASTM80-55-06
• Blank Process：Sand Casting
• Casting Tolerance：CT9-11 for Iron Casting
• Machining Process：Drilling, Milling, Boring etc.
• Rough Surface Roughness：Ra25-100
• Casting Blank Weight：Range From 0.01kg-1000kg
• Lead Time：45 Days for Iron Casting
• Service for Iron Casting：OEM, ODM for Iron Casting
• Casting Blank Size：as Customer Request
• Casting Serive：Technical Support and Services
• Transport Package：Multiplayer Wood Box with Big Plastic Bag Inside
• Specification：Customized Size
• Trademark：Matech Industry
• Origin：China Shanghai
• HS Code：8480300000
• Production Capacity：200ton,Month

General Products
 Application/Service Area

Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.

 Main blank Process for Casting

Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting

 Blanks Tolerance -Casting  Tolerance
CT9-10 for  Machine Molding Process,
CT8-9 for Shell Molding and Lost Foam Molding Casting Process
CT10-11 for Manual Molding Sand  casting Process
 Applicable Material

See Table Below (Ductile Iron Casting, Grey Iron Casting)
OR According to customer requirement

 Casting Blank Size  /Dimensions
2 mm-2000mm / 0.08inch-79inch  for casting iron, according to customer requirement
 Casting Blank Weight
Range from 0.01kg-1000kg for casting iron
 Applicable Machining Process

CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and  etc.

 Machining Tolerance
From 0.005mm-0.01mm-0.1mm
 Machined Surface Quality
Ra 0.8-Ra3.2, according to customer requirement
 Applicable Heat Treatment

Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching

 Applicable Finish Surface  Treatment

Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting.

 MOQ
For iron casting : 100pcs
For Machining : 50pcs
 Lead Time
45days from the receipt date of deposit for iron casting


Cast iron with nomular graphite
DIN EN 1563
Germany
DIN 1693
France
NF
Great Britain
BS
Netherlands
NEN
Sweden
MNC
USA
ASTM A536
EN-GJS-350-22-LT
GGG-35.3
FGS 370-17
370/17
GN 38
0717-15
----
EN-GJS-400-18-LT
GGG-40.3
    ----
----
----
----
60-40-18
EN-GJS-400-15
GGG-40
FGS-400-12
420/12
GN 42
0717-02
60-40-18
EN-GJS-400-10
----
----
420/12
----
----
65-45-12
EN-GJS-500-7
GGG-50
FGS-500-7
500/7
GN 50
0727-02
65-45-12/
80-55-06
EN-GJS-600-3
GGG-60
FGS-600-3
600/3
GN 60
0732-03
80-55-06
EN-GJS-700-2
GGG-70
FGS-700-2
700/2
GN 70
0737-01
100-70-03
EN-GJS-800-2
GGG-80
FGS-800-2
800/2


120-90-02
EN-GJS-1000-5 (DIN EN 1564)
GGG-100B/A
----
----
----
----
850-550-10
EN-GJS-AX NiSiCr35 5 2
GGG-
NiSiCr 35 5 2
FGS-
Ni35Si5Cr2
S5S
----
----
Type D-5S


Cast iron with lamellar graphite
DIN EN 1561
Germany
DIN 1691
France
NF
Great Britain
BS
Netherlands
NEN
Sweden
MNC
USA
ASTM A48
EN-GJL-150
GG-15
Ft 15 D
Grade 150
GG 15
01 15-00
20 B / 25 B
EN-GJL-200
GG-20
Ft 20 D
Grade 180/220
GG 20
01 20-00
25 B / 30 B
EN-GJL-250
GG-25
Ft 25 D
Grade 220/260
GG 25
01 25-00
35 B / 40 B
EN-GJL-300
GG 30
Ft 30 D
Grade 300
GG 30
01 30-00
40B / 45 B


Our Package :




Packing & Delivery  (Show As Above):
Inner Packing →Strong & waterproof plastic big is packed inside, to keep the product in safe condition.
Or as customer requests.


Outer Packing →Multilayer wooden box with strong bandages, used for standard export package.
Or customized as per customer's requirements.

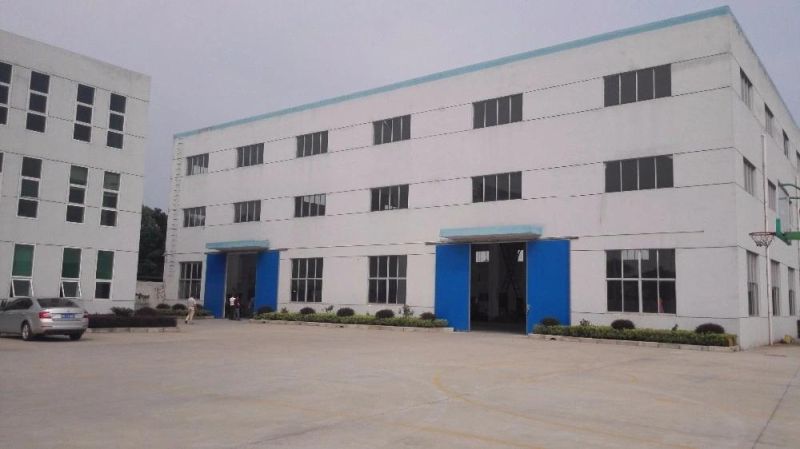

Our Company



                       Shanghai Matech Machinery Manufacture Co., Ltd.
                                                                                                   --Branch of Matech Industry Ltd.



We specialize in Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system etc.

With keeping manufacturing process design, quality planning, key manufacturing processes and final quality control in house.
We are mastering key competence to supply quality mechanical parts and assembly to our customers for both Chinese and Export Market .

To satisfy different mechanical and functional requirements from our customers we are making a big range of metal products for our clients on base of different blanks solutions and technologies.
These blanks solutions and technologies include processes of Iron Casting, Steel Casting, Stainless Steel Casting, Aluminum Casting and Forging.

During the early involvement of the customer's design process, we are giving professional input to our customers in terms of process feasibility, cost reduction and function approach.


                You are welcome to contact us for technical enquiry and business cooperation.








FAQ:
1. Are you a manufacturer or a trading company?
We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.

2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost,
and the charge will be deducted from the payment for formal order.

3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied,
the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What's your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
